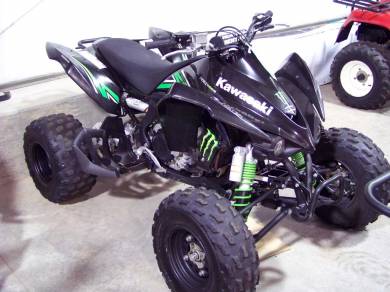

2009 Kawasaki KFX450R Monster Energy Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Kawasaki KFX450R Monster Energy.

Basic Specs

Year2009
MakeKawasaki
ModelKawasaki KFX450R Monster Energy
TypeATV
CostUS$ 7849. Prices depend on country, taxes, accessories, etc.

Engine

Displacement449.00 ccm (27.40 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression8.9:1
Bore/Stroke96.0 x 62.1 mm (3.8 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. 32-bit digital, with 42mm Keihin throttle body
IgnitionSolid state with electronic ignition backup
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.84 litres (2.60 gallons)
Emissions

Chassis

Frame TypeAluminum double cradle, racing type
Rake
Trail
Front SuspensionDual A-arms, coil-over shocks / 8.5 in
Front Travel
Rear SuspensionSwingarm with piggy-back reservoir shock, dual-rate spring / 10.0 in
Rear Travel
Seat
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,064 mm (41.9 inches)
Total Length1,806 mm (71.1 inches)
Total Width1,171 mm (46.1 inches)
Ground Clearance109 mm (4.3 inches)
Wheelbase1,255 mm (49.4 inches)
Dry Weight394.7 kg (870.2 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre21/7-10 (AT)
Rear Tire/Tyre20/10-9 (AT)
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki KFX450R Monster Energy. This ATV model is powered by a Single cylinder, four-stroke engine with 449.00 ccm (27.40 cubic inches) of actual displacement before 8.9:1 compression. Fueling is metered via Injection. 32-bit digital, with 42mm Keihin throttle body allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki KFX450R Monster Energy is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 21/7-10 (AT) and the rear is 20/10-9 (AT) . The entire package is supported by the frame, Aluminum double cradle, racing type. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Kawasaki KFX450R Monster Energy was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Two-wheel drive. Removable headlights.
