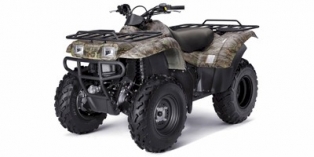

2009 Kawasaki Prairie 360 4x4 Camo Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Kawasaki Prairie 360 4x4 Camo.

Basic Specs

Year2009
MakeKawasaki
ModelKawasaki Prairie 360 4x4 Camo
TypeATV
CostUS$ 5699. Prices depend on country, taxes, accessories, etc.

Engine

Displacement362.00 ccm (22.09 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression8.3:1
Bore/Stroke80.0 x 72.0 mm (3.1 x 2.8 inches)
Valves/Cylinder
FuelingCarburettor. Keihin CVK34
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity13.62 litres (3.60 gallons)
Emissions

Chassis

Frame TypeDouble cradle steel
Rake
Trail
Front SuspensionMacPherson strut / 6.7 in.
Front Travel
Rear SuspensionSwingarm with single shock, preload adjustment / 7.1 in.
Rear Travel
Seat
Seat Height904 mm (35.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,065 mm (81.3 inches)
Total Width1,204 mm (47.4 inches)
Ground Clearance249 mm (9.8 inches)
Wheelbase1,252 mm (49.3 inches)
Dry Weight290.1 kg (639.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre25/8-12 (AT)
Rear Tire/Tyre25/10-12 (AT)
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Prairie 360 4x4 Camo. This ATV model is powered by a Single cylinder, four-stroke engine with 362.00 ccm (22.09 cubic inches) of actual displacement before 8.3:1 compression. Fueling is metered via Carburettor. Keihin CVK34 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki Prairie 360 4x4 Camo is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 25/8-12 (AT) and the rear is 25/10-12 (AT) . The entire package is supported by the frame, Double cradle steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Kawasaki Prairie 360 4x4 Camo was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Selectable four-wheel drive with Variable Front Differential Control. Continuously variable transmission with Kawasaki Engine Brake Control, high and low range, plus reverse.
