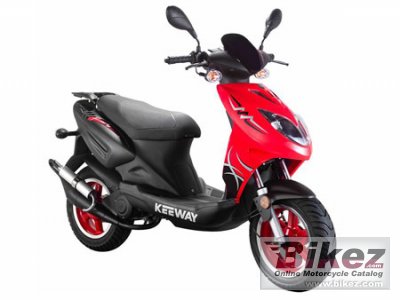

2009 Keeway F-Act 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Keeway F-Act 125.

Basic Specs

Year2009
MakeKeeway
ModelKeeway F-Act 125
Cost

Engine

Displacement124.60 ccm (7.60 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression6.4:1
Bore/Stroke52.4 x 57.8 mm (2.1 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
Driveline

Performance

Horespower8.58 HP (6.3 kW)
Torque8.31 Nm (0.8 kgf-m or 6.1 ft.lbs)
Top Speed86.0 km/h (53.4 mph)

Fuel Economy & Polution

Fuel Consumption2.80 litres/100 km (35.7 km/l or 84.01 mpg)
Fuel Capacity5.00 litres (1.32 gallons)
Emissions65.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height1,115 mm (43.9 inches)
Total Length1,817 mm (71.5 inches)
Total Width693 mm (27.3 inches)
Ground Clearance90 mm (3.5 inches)
Wheelbase1,283 mm (50.5 inches)
Dry Weight102.0 kg (224.9 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-12
Rear Tire/Tyre130/70-12
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Keeway F-Act 125. This Scooter model is powered by a Single cylinder, four-stroke engine with 124.60 ccm (7.60 cubic inches) of actual displacement before 6.4:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 8.58 HP (6.3 kW) horsepower and 8.31 Nm (0.8 kgf-m or 6.1 ft.lbs) torque. According to our records engine heat of the Keeway F-Act 125 is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-12 and the rear is 130/70-12 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Keeway F-Act 125 was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
