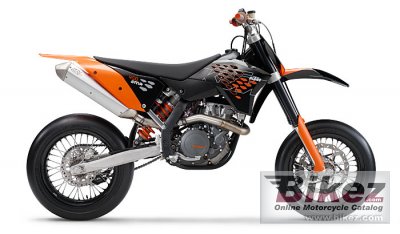

2009 KTM 450 SMR Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 KTM 450 SMR.

Basic Specs

Year2009
MakeKTM
ModelKTM 450 SMR
Cost

Engine

Displacement449.30 ccm (27.42 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.5:1
Bore/Stroke97.0 x 60.8 mm (3.8 x 2.4 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin MX FCR 41
IgnitionKokusan
Exhaust
LubricationPressure lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchAPTC Antihopping, operated hydraulically
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity8.20 litres (2.17 gallons)
Emissions

Chassis

Frame TypeChromium-Molybdenum central double-cradle-type frame, powder coated. Aluminium subframe.
Rake26.5°
Trail119 mm (4.7 inches)
Front SuspensionWP USD
Front Travel280 mm (11.0 inches)
Rear SuspensionWP PDS mono shock
Rear Travel310 mm (12.2 inches)
Seat
Seat Height920 mm (36.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance300 mm (11.8 inches)
Wheelbase1,475 mm (58.1 inches)
Dry Weight111.5 kg (245.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre125/80-R20
Rear Tire/Tyre170/55-R17
Front BrakesSingle disc. Magura four piston, radially bolted caliper
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Brembo single-piston, floating caliper
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the KTM 450 SMR. This Super motard model is powered by a Single cylinder, four-stroke engine with 449.30 ccm (27.42 cubic inches) of actual displacement before 12.5:1 compression. Fueling is metered via Carburettor. Keihin MX FCR 41 allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 450 SMR is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 125/80-R20 and the rear is 170/55-R17 . The entire package is supported by the frame, Chromium-Molybdenum central double-cradle-type frame, powder coated. Aluminium subframe.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Magura four piston, radially bolted caliper front brakes and Single disc. Brembo single-piston, floating caliper rear brakes. The KTM 450 SMR was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
