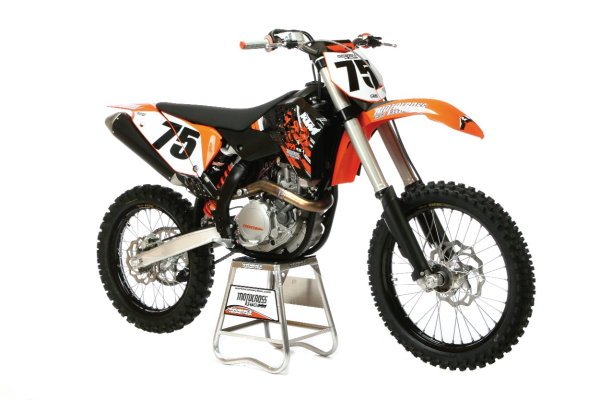

2009 KTM 450 SX-F Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 KTM 450 SX-F.

Basic Specs

Year2009
MakeKTM
ModelKTM 450 SX-F
Cost

Engine

Displacement449.30 ccm (27.42 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.5:1
Bore/Stroke97.0 x 60.8 mm (3.8 x 2.4 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin MX FCR 41
IgnitionKokusan digital DC-CDI
ExhaustAluminium
LubricationPressure lubrication
CoolingLiquid

Drivetrain

Gearbox4-speed
Final DriveChain
ClutchWet multi-disc clutch, operated hydraulically
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity8.00 litres (2.11 gallons)
Emissions

Chassis

Frame TypeCentral double-cradle-type 25 CrMo4. Aluminium subframe.
Rake26.5°
Trail
Front SuspensionWP USD
Front Travel300 mm (11.8 inches)
Rear SuspensionWP PDS shock absorber
Rear Travel335 mm (13.2 inches)
Seat
Seat Height985 mm (38.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance380 mm (15.0 inches)
Wheelbase1,475 mm (58.1 inches)
Dry Weight104.6 kg (230.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre80/100-21
Rear Tire/Tyre110/90-19
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the KTM 450 SX-F. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 449.30 ccm (27.42 cubic inches) of actual displacement before 12.5:1 compression. Fueling is metered via Carburettor. Keihin MX FCR 41 allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 450 SX-F is moderated by Liquid. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 80/100-21 and the rear is 110/90-19 . The entire package is supported by the frame, Central double-cradle-type 25 CrMo4. Aluminium subframe.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The KTM 450 SX-F was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
