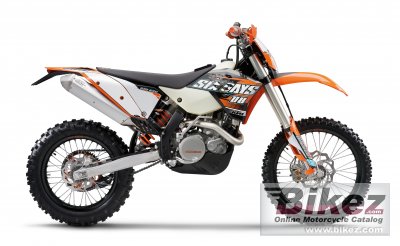

2009 KTM 530 EXC SixDays Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 KTM 530 EXC SixDays.

Basic Specs

Year2009
MakeKTM
ModelKTM 530 EXC SixDays
Cost

Engine

Displacement510.40 ccm (31.14 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.9:1
Bore/Stroke95.0 x 72.0 mm (3.7 x 2.8 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin MX FCR 39
IgnitionKokusan
ExhaustAluminium
LubricationPressure lubrication with 3 oil pumps
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multi-disc clutch, operated hydraulically
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.00 litres (2.38 gallons)
Emissions

Chassis

Frame TypeCentral double-cradle-type 25CrMo4. Aluminium subframe.
Rake26.5°
Trail
Front SuspensionWP USD, 48 mm
Front Travel300 mm (11.8 inches)
Rear SuspensionWP monoshock PDS
Rear Travel335 mm (13.2 inches)
Seat
Seat Height985 mm (38.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance380 mm (15.0 inches)
Wheelbase1,481 mm (58.3 inches)
Dry Weight113.9 kg (251.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre140/80-18
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the KTM 530 EXC SixDays. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 510.40 ccm (31.14 cubic inches) of actual displacement before 11.9:1 compression. Fueling is metered via Carburettor. Keihin MX FCR 39 allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 530 EXC SixDays is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 140/80-18 . The entire package is supported by the frame, Central double-cradle-type 25CrMo4. Aluminium subframe.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The KTM 530 EXC SixDays was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
