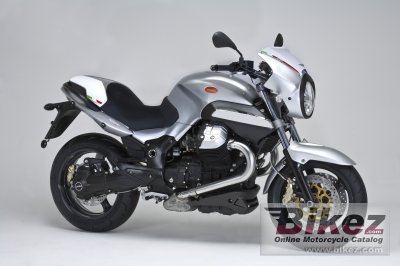

These are the known mechanical and performance specifications for your 2009 Moto Guzzi 1200 Sport ABS.
Basic Specs

Engine
Displacement1151.00 ccm (70.23 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke
Valves/Cylinder
FuelingInjection. Weber-Marelli electronic fuel injection with stepper motor control
Ignition
Exhaust
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchDouble disk, dry
Driveline
Performance
Horespower93.87 HP (68.5 kW)
Torque100.00 Nm (10.2 kgf-m or 73.8 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity23.00 litres (6.08 gallons)
Emissions
Chassis
Frame TypeTubular cradle, high tensile steel
Rake25.0°
Trail120 mm (4.7 inches)
Front SuspensionTelescopic hydraulic fork with 45 mm and TIN surface treatment, preload adjustable
Front Travel120 mm (4.7 inches)
Rear SuspensionSingle arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic)
Rear Travel140 mm (5.5 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,195 mm (86.4 inches)
Total Width840 mm (33.1 inches)
Ground Clearance185 mm (7.3 inches)
Wheelbase1,485 mm (58.5 inches)
Dry Weight229.0 kg (504.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. ABS. Two channels anti-block system.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Two channels anti-block system.
Rear Brake Diameter282 mm (11.1 inches)
Wheels
Comments
