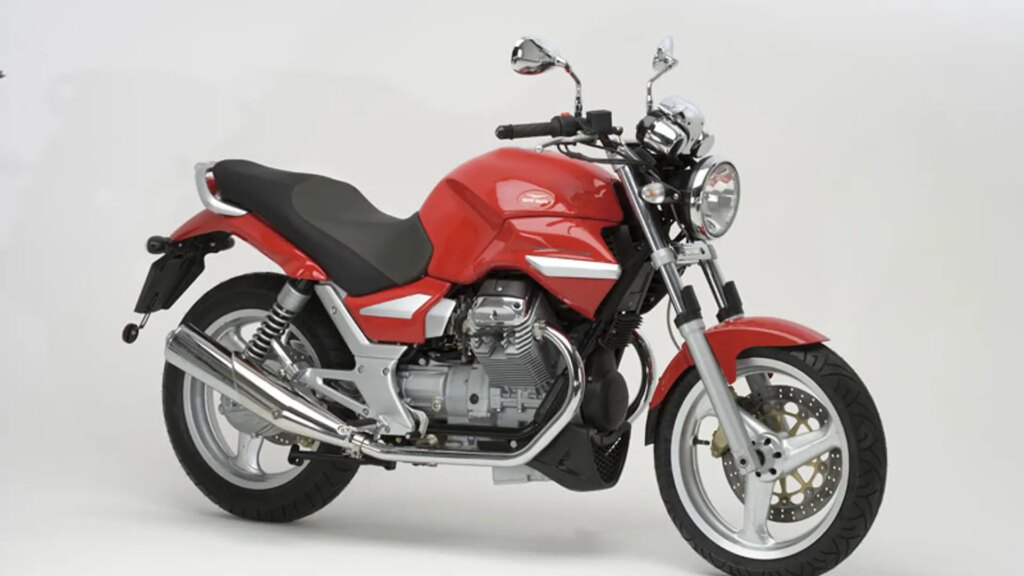

These are the known mechanical and performance specifications for your 2009 Moto Guzzi Breva 750.
Basic Specs
Year2009
MakeMoto Guzzi
ModelMoto Guzzi Breva 750
TypeNaked bike
CostUS$ 7790. Prices depend on country, taxes, accessories, etc.
Engine
Displacement744.00 ccm (45.40 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke80.0 x 74.0 mm (3.1 x 2.9 inches)
Valves/Cylinder2
FuelingInjection. Weber-Marelli electric injection
IgnitionMagneti Marelli IAW 15RC electronic digital ignition with inductive spark
ExhaustThree-way catalyzer with Lambda sensor
LubricationBy lobes with pressure pump
CoolingAir
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchSingle disc dry with cush drive
Driveline
Performance
Horespower47.60 HP (34.7 kW)
Torque54.70 Nm (5.6 kgf-m or 40.3 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.00 litres (4.76 gallons)
Emissions
Chassis
Frame TypeDetachable tubular duplex cradle in special high-strengh steel
Rake27.5°
Trail109 mm (4.3 inches)
Front SuspensionMarzocchi hydraulic telescopic fork
Front Travel130 mm (5.1 inches)
Rear SuspensionSwinging arm in light cast alloy with two dampers, preload adjustable
Rear Travel95 mm (3.7 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,175 mm (46.3 inches)
Total Length2,170 mm (85.4 inches)
Total Width730 mm (28.7 inches)
Ground Clearance190 mm (7.5 inches)
Wheelbase1,449 mm (57.0 inches)
Dry Weight182.0 kg (401.2 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre110/70-17
Rear Tire/Tyre130/80-17
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter260 mm (10.2 inches)
Wheels
Comments
