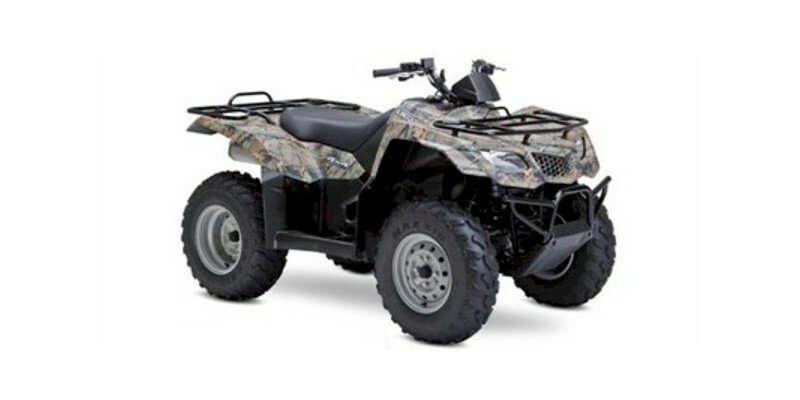

These are the known mechanical and performance specifications for your 2009 Suzuki KingQuad 400FS Camo.
Basic Specs
Year2009
MakeSuzuki
ModelSuzuki KingQuad 400FS Camo
TypeATV
CostUS$ 5699. Prices depend on country, taxes, accessories, etc.
Engine
Displacement376.00 ccm (22.94 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke82.0 x 71.2 mm (3.2 x 2.8 inches)
Valves/Cylinder
FuelingCarburettor. Keihin CVK32
Ignition
Exhaust
LubricationWet sump
CoolingOil & air
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.89 litres (4.20 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionIndependent, double wishbone, coil spring, oil damped
Front Travel
Rear SuspensionSwingarm type, coil spring, oil damped
Rear Travel
Seat
Seat Height840 mm (33.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,220 mm (48.0 inches)
Total Length2,060 mm (81.1 inches)
Total Width
Ground Clearance250 mm (9.8 inches)
Wheelbase1,270 mm (50.0 inches)
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
Selectable 2x4 or 4x4.
