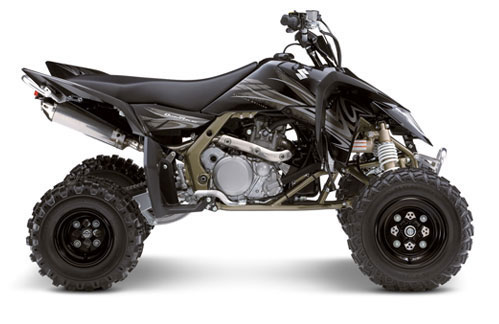

These are the known mechanical and performance specifications for your 2009 Suzuki QuadRacer R450 Limited Edition.
Basic Specs
Year2009
MakeSuzuki
ModelSuzuki QuadRacer R450 Limited Edition
TypeATV
CostUS$ 7799. Prices depend on country, taxes, accessories, etc.
Engine
Displacement449.00 ccm (27.40 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke95.5 x 62.8 mm (3.8 x 2.5 inches)
Valves/Cylinder4
FuelingInjection
IgnitionCDI
Exhaust
LubricationDry sump
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity9.00 litres (2.38 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionIndependent, double wishbone, coil spring, oil damped
Front Travel
Rear SuspensionSwingarm type, coil spring, oil damped
Rear Travel
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,085 mm (42.7 inches)
Total Length1,845 mm (72.6 inches)
Total Width
Ground Clearance240 mm (9.4 inches)
Wheelbase1,285 mm (50.6 inches)
Dry Weight
Wet Weight188.0 kg (414.5 pounds)
Wheels & Brakes
Front Tire/Tyre20/7-AT10
Rear Tire/Tyre18/10-AT8
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
