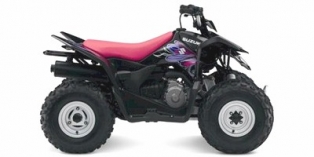

These are the known mechanical and performance specifications for your 2009 Suzuki QuadSport Z90 Special Edition.
Basic Specs
Year2009
MakeSuzuki
ModelSuzuki QuadSport Z90 Special Edition
TypeATV
CostUS$ 2499. Prices depend on country, taxes, accessories, etc.
Engine
Displacement90.00 ccm (5.49 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke45.5 x 55.2 mm (1.8 x 2.2 inches)
Valves/Cylinder
Fueling
IgnitionCDI
Exhaust
LubricationWet sump
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity6.00 litres (1.59 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionIndependent, swing axle, coil spring, oil damped
Front Travel
Rear SuspensionSwingarm type, coil spring, oil damped
Rear Travel
Seat
Seat Height650 mm (25.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height915 mm (36.0 inches)
Total Length1,505 mm (59.3 inches)
Total Width875 mm (34.4 inches)
Ground Clearance
Wheelbase1,005 mm (39.6 inches)
Dry Weight
Wet Weight127.0 kg (280.0 pounds)
Wheels & Brakes
Front Tire/Tyre19/7-AT10
Rear Tire/Tyre19/10-AT9
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
