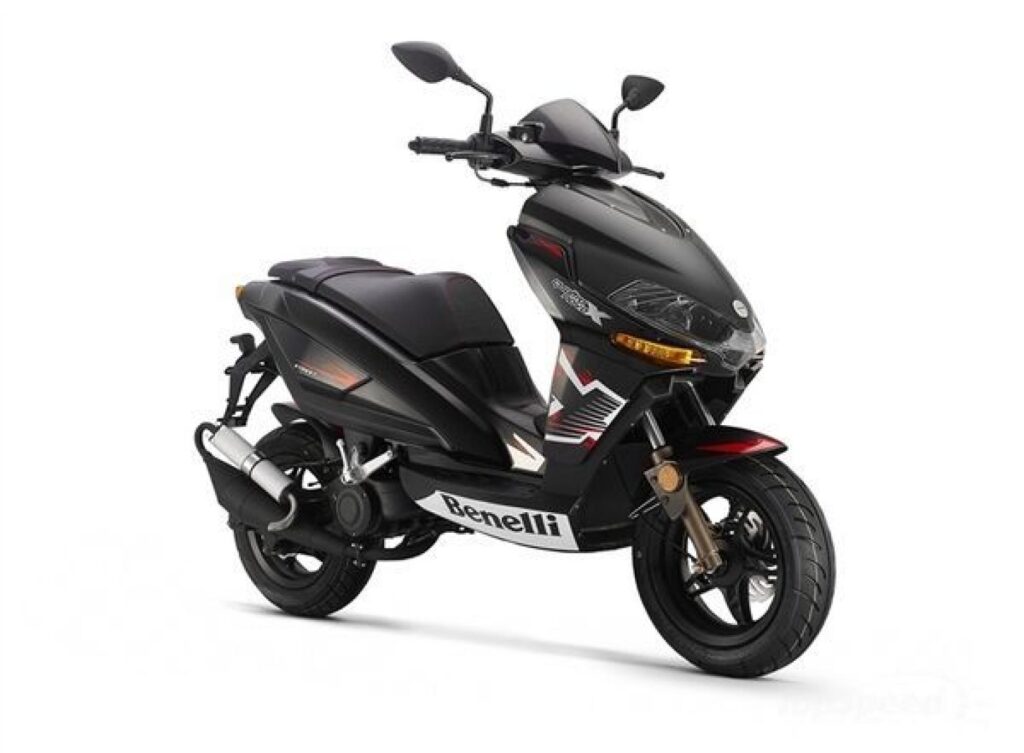

2010 Benelli QattroNove X On Road Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Benelli QattroNove X On Road.

Basic Specs

Year2010
MakeBenelli
ModelBenelli QattroNove X On Road
Cost

Engine

Displacement49.00 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression7.0:1
Bore/Stroke40.0 x 39.2 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
Driveline

Performance

Horespower2.68 HP (2.0 kW)
Torque3.70 Nm (0.4 kgf-m or 2.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity6.20 litres (1.64 gallons)
Emissions

Chassis

Frame TypeSplit single cradle frame in high tensile strength steel tube
Rake
Trail
Front SuspensionHydraulic telescopic fork
Front Travel
Rear SuspensionFloating engine with hydraulic rear dumper – 5 positions spring preload adjustments
Rear Travel
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,805 mm (71.1 inches)
Total Width720 mm (28.3 inches)
Ground Clearance
Wheelbase1,275 mm (50.2 inches)
Dry Weight96.0 kg (211.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-R12
Rear Tire/Tyre130/70-R12
Front BrakesSingle disc
Front Brake Diameter190 mm (7.5 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter110 mm (4.3 inches)
Wheels

Comments

It appears you're interested in specifications for the Benelli QattroNove X On Road. This Scooter model is powered by a Single cylinder, two-stroke engine with 49.00 ccm (2.99 cubic inches) of actual displacement before 7.0:1 compression. Fueling is metered via Carburettor. Mikuni allowing this machine to produce its 2.68 HP (2.0 kW) horsepower and 3.70 Nm (0.4 kgf-m or 2.7 ft.lbs) torque. According to our records engine heat of the Benelli QattroNove X On Road is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-R12 and the rear is 130/70-R12 . The entire package is supported by the frame, Split single cradle frame in high tensile strength steel tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Benelli QattroNove X On Road was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
