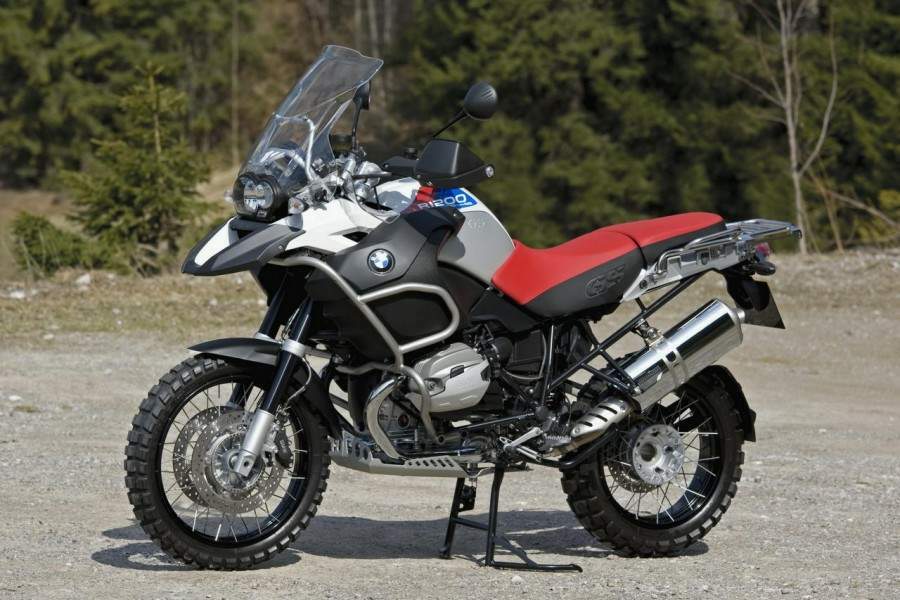

2010 BMW R 1200 GS Adventure Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 BMW R 1200 GS Adventure.

Basic Specs

Year2010
MakeBMW
ModelBMW R 1200 GS Adventure
Cost

Engine

Displacement1170.00 ccm (71.39 cubic inches)
Type
DetailsTwo cylinder boxer, two-stroke
Max RPM
Compression12.0:1
Bore/Stroke101.0 x 73.0 mm (4.0 x 2.9 inches)
Valves/Cylinder4
FuelingInjection. Electronic intake pipe injection/BMS-K digital engine management with overrun fuel cut-off, twin spark ignition
Ignition
ExhaustClosed-loop 3-way catalytic converter, emission standard EU-3
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchSingle dry plate clutch, hydraulically operated
Driveline

Performance

Horespower103.25 HP (75.4 kW)
Torque115.00 Nm (11.7 kgf-m or 84.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.60 litres/100 km (21.7 km/l or 51.13 mpg)
Fuel Capacity33.00 litres (8.72 gallons)
Emissions106.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTwo-section frame consisting of front and rear sections, load- bearing engine-gearbox unit
Rake24.8°
Trail89 mm (3.5 inches)
Front SuspensionBMW Motorrad Telelever
Front Travel210 mm (8.3 inches)
Rear SuspensionCast aluminium single-sided swing arm with BMW Motorrad Paralever
Rear Travel220 mm (8.7 inches)
Seat
Seat Height910 mm (35.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,525 mm (60.0 inches)
Total Length2,240 mm (88.2 inches)
Total Width990 mm (39.0 inches)
Ground Clearance
Wheelbase1,510 mm (59.4 inches)
Dry Weight223.0 kg (491.6 pounds)
Wet Weight256.0 kg (564.4 pounds)

Wheels & Brakes

Front Tire/Tyre110/80-R19
Rear Tire/Tyre150/70-R17
Front BrakesDouble disc
Front Brake Diameter305 mm (12.0 inches)
Rear BrakesSingle disc
Rear Brake Diameter265 mm (10.4 inches)
Wheels

Comments

It appears you're interested in specifications for the BMW R 1200 GS Adventure. This Enduro / offroad model is powered by a Two cylinder boxer, two-stroke engine with 1170.00 ccm (71.39 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Injection. Electronic intake pipe injection/BMS-K digital engine management with overrun fuel cut-off, twin spark ignition allowing this machine to produce its 103.25 HP (75.4 kW) horsepower and 115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) torque. According to our records engine heat of the BMW R 1200 GS Adventure is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 110/80-R19 and the rear is 150/70-R17 . The entire package is supported by the frame, Two-section frame consisting of front and rear sections, load- bearing engine-gearbox unit. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The BMW R 1200 GS Adventure was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
