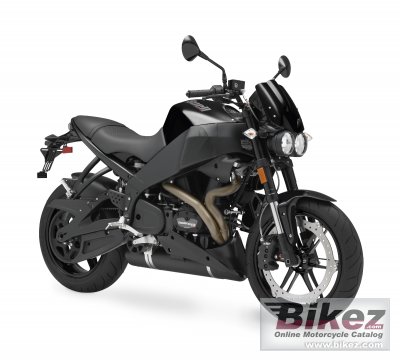

These are the known mechanical and performance specifications for your 2010 Buell XB12Ss Lightning Long.
Basic Specs
Year2010
MakeBuell
ModelBuell XB12Ss Lightning Long
TypeNaked bike
CostUS$ 10299. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1202.88 ccm (73.40 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke88.9 x 96.8 mm (3.5 x 3.8 inches)
Valves/Cylinder2
FuelingInjection. 49 mm down draft DDFI 3 injection
Ignition
ExhaustTuned, tri-pass resonance chamber with InterActive valve and mass-centralised mounting
Lubrication
CoolingOil & air
Drivetrain
Gearbox5-speed
Final DriveBelt
ClutchWet, multi-plate, compensated
Driveline
Performance
Horespower103.00 HP (75.2 kW)
Torque113.90 Nm (11.6 kgf-m or 84.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity16.65 litres (4.40 gallons)
Emissions
Chassis
Frame TypeBlack aluminium frame with Uniplanar powertrain vibration isolation system, fuel in frame
Rake23.1°
Trail119 mm (4.7 inches)
Front Suspension43 mm Showa inverted forks with adjustable compression damping, rebound damping and spring preload
Front Travel143 mm (5.6 inches)
Rear SuspensionShowa coil-over monoshock with remote, under-seat reservoir and adjustable compression damping, rebound damping and spring preload
Rear Travel143 mm (5.6 inches)
Seat
Seat Height843 mm (33.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,080 mm (81.9 inches)
Total Width754 mm (29.7 inches)
Ground Clearance140 mm (5.5 inches)
Wheelbase1,364 mm (53.7 inches)
Dry Weight181.0 kg (399.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesSingle disc. ZTL2-type brake, 8-piston, 4 pads, fixed caliper, 375 mm single-sided, inside out, stainless steel, floating rotor
Front Brake Diameter375 mm (14.8 inches)
Rear BrakesSingle disc. Two-piston, direct mount caliper; stainless steel, fixed rotor
Rear Brake Diameter240 mm (9.4 inches)
Wheels
