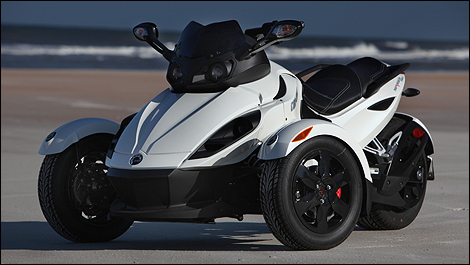

2010 Can-Am Spyder RS-S Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Can-Am Spyder RS-S.

Basic Specs

Year2010
MakeCan-Am
ModelCan-Am Spyder RS-S
TypeSport
CostUS$ 18799. Prices depend on country, taxes, accessories, etc.

Engine

Displacement998.00 ccm (60.90 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.8:1
Bore/Stroke97.0 x 68.0 mm (3.8 x 2.7 inches)
Valves/Cylinder4
FuelingInjection. Multi-point EFI
IgnitionElectronic ignition with dual output coil
ExhaustExhaust system 2-into-1 with catalytic converter
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveBelt
Clutch
Driveline

Performance

Horespower106.00 HP (77.4 kW)
Torque104.00 Nm (10.6 kgf-m or 76.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity25.00 litres (6.61 gallons)
Emissions

Chassis

Frame TypeSST Spyder (Surrounding Spar Technology)
Rake
Trail
Front SuspensionDouble A-Arm with anti-roller
Front Travel145 mm (5.7 inches)
Rear SuspensionSwing-arm with monoshock
Rear Travel145 mm (5.7 inches)
Seat
Seat Height737 mm (29.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,145 mm (45.1 inches)
Total Length2,667 mm (105.0 inches)
Total Width1,506 mm (59.3 inches)
Ground Clearance115 mm (4.5 inches)
Wheelbase1,727 mm (68.0 inches)
Dry Weight317.0 kg (698.9 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre165/65-R14
Rear Tire/Tyre225/50-R15
Front BrakesDouble disc. EBD, ABS. 4 piston calipers. Foot-actuated, fully integrated hydraulic 3-wheel braking system.
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. EBD, ABS. Electro-mechanical park brake system with actuator on the rear caliper.
Rear Brake Diameter260 mm (10.2 inches)
Wheels

Comments

It appears you're interested in specifications for the Can-Am Spyder RS-S. This Sport model is powered by a V2, four-stroke engine with 998.00 ccm (60.90 cubic inches) of actual displacement before 10.8:1 compression. Fueling is metered via Injection. Multi-point EFI allowing this machine to produce its 106.00 HP (77.4 kW) horsepower and 104.00 Nm (10.6 kgf-m or 76.7 ft.lbs) torque. According to our records engine heat of the Can-Am Spyder RS-S is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 165/65-R14 and the rear is 225/50-R15 . The entire package is supported by the frame, SST Spyder (Surrounding Spar Technology). We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. EBD, ABS. 4 piston calipers. Foot-actuated, fully integrated hydraulic 3-wheel braking system. front brakes and Single disc. EBD, ABS. Electro-mechanical park brake system with actuator on the rear caliper. rear brakes. The Can-Am Spyder RS-S was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Three wheel bike.
