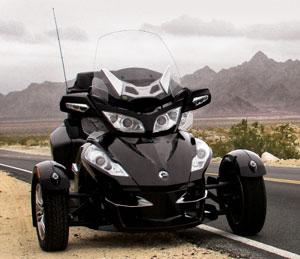

2010 Can-Am Spyder RT-S Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Can-Am Spyder RT-S.

Basic Specs

Year2010
MakeCan-Am
ModelCan-Am Spyder RT-S
CostUS$ 24999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement998.00 ccm (60.90 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression12.2:1
Bore/Stroke97.0 x 68.0 mm (3.8 x 2.7 inches)
Valves/Cylinder4
FuelingInjection. Multi-point EFI with 51 mm diameter throttle bodies
IgnitionElectronic ignition with dual output coil
ExhaustExhaust system 2-into-1 with catalytic converter
LubricationLubrication 5W40 Semi-Synthetic oil
CoolingLiquid

Drivetrain

GearboxAutomatic
Final Drive
Clutch
Driveline

Performance

Horespower100.00 HP (73.0 kW)
Torque104.00 Nm (10.6 kgf-m or 76.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity25.00 litres (6.61 gallons)
Emissions

Chassis

Frame TypeSST Spyder (Surrounding Spar Technology)
Rake
Trail
Front SuspensionDouble A-Arm with anti-roll bar. Gas shocks with 5-position.
Front Travel151 mm (5.9 inches)
Rear SuspensionPneumatic adjustable preload
Rear Travel145 mm (5.7 inches)
Seat
Seat Height772 mm (30.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,510 mm (59.4 inches)
Total Length2,667 mm (105.0 inches)
Total Width1,572 mm (61.9 inches)
Ground Clearance115 mm (4.5 inches)
Wheelbase1,708 mm (67.2 inches)
Dry Weight421.0 kg (928.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre165/65-R14
Rear Tire/Tyre225/50-R15
Front BrakesDouble disc. EBD, ABS. 4 piston calipers. Foot-actuated, fully integrated hydraulic 3-wheel braking system.
Front Brake Diameter250 mm (9.8 inches)
Rear BrakesSingle disc. EBD, ABS. Electro-mechanical park brake system with actuator on the rear caliper.
Rear Brake Diameter250 mm (9.8 inches)
Wheels

Comments

It appears you're interested in specifications for the Can-Am Spyder RT-S. This Touring model is powered by a V2, four-stroke engine with 998.00 ccm (60.90 cubic inches) of actual displacement before 12.2:1 compression. Fueling is metered via Injection. Multi-point EFI with 51 mm diameter throttle bodies allowing this machine to produce its 100.00 HP (73.0 kW) horsepower and 104.00 Nm (10.6 kgf-m or 76.7 ft.lbs) torque. According to our records engine heat of the Can-Am Spyder RT-S is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 165/65-R14 and the rear is 225/50-R15 . The entire package is supported by the frame, SST Spyder (Surrounding Spar Technology). We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. EBD, ABS. 4 piston calipers. Foot-actuated, fully integrated hydraulic 3-wheel braking system. front brakes and Single disc. EBD, ABS. Electro-mechanical park brake system with actuator on the rear caliper. rear brakes. The Can-Am Spyder RT-S was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Optional manual gear box available (SM5 instead of semi-automatic SE5)
