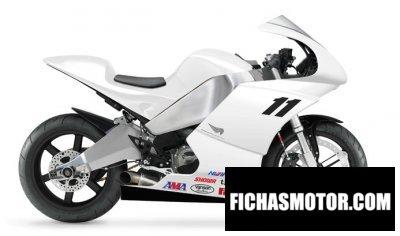

These are the known mechanical and performance specifications for your 2010 Erik Buell Racing 1125RR ASB.
Basic Specs
Year2010
MakeErik Buell Racing
ModelErik Buell Racing 1125RR ASB
TypeSport
CostUS$ 41900. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1126.00 ccm (68.71 cubic inches)
Type72 and #730; V-Twin. Titanium valves, 42.0mm intake, 35.4 mm exhaust
DetailsV2, four-stroke
Max RPM
Compression14.3:1
Bore/Stroke103.0 x 67.5 mm (4.1 x 2.7 inches)
Valves/Cylinder4
FuelingInjection. IDS Technology DDFI 3 electronic fuel injection and engine management system, fully programmable, 61mm throttle bodies, single injector, PWM fuel pump
Ignition
ExhaustStainless steel ultralight 2 into 1 system.
Lubrication
Cooling
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchMultiplate Mechanical Slipper
Driveline520 Chain. Primary drive: Straight cut gear, 1.806 ratio.
Performance
Horespower170.00 HP (124.1 kW)
Torque116.62 Nm (11.9 kgf-m or 86.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.41 litres (4.60 gallons)
Emissions
Chassis
Frame TypeLight alloy large section beam with integral fuel cell. Subframe: Light alloy tubular.
Rake21.0°
Trail
Front SuspensionShowa Race 43mm inverted fork, fully adjustable with BPF technology providing true separation of rebound and compression damping.
Front Travel120 mm (4.7 inches)
Rear SuspensionLight alloy swingarm with Showa Race damper, adjustable compression, rebound and ride height.
Rear Travel127 mm (5.0 inches)
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,400 mm (55.1 inches)
Dry Weight166.9 kg (368.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc. Semi floating ISO multi-fin rotor with 8 piston ZTL2 caliper
Front Brake Diameter388 mm (15.3 inches)
Rear BrakesSingle disc. Lightweight disc, 2 piston caliper
Rear Brake Diameter205 mm (8.1 inches)
WheelsFront 6 spoke ZTL magnesium, 3.50 x 17. Rear 6 spoke magnesium, 6.00 x 17.
Comments
Racing bike not legal for street usage. Adjustable rake. Adjustable wheelbase. Brand name sometimes abbreviated EBR or EBRacing.
