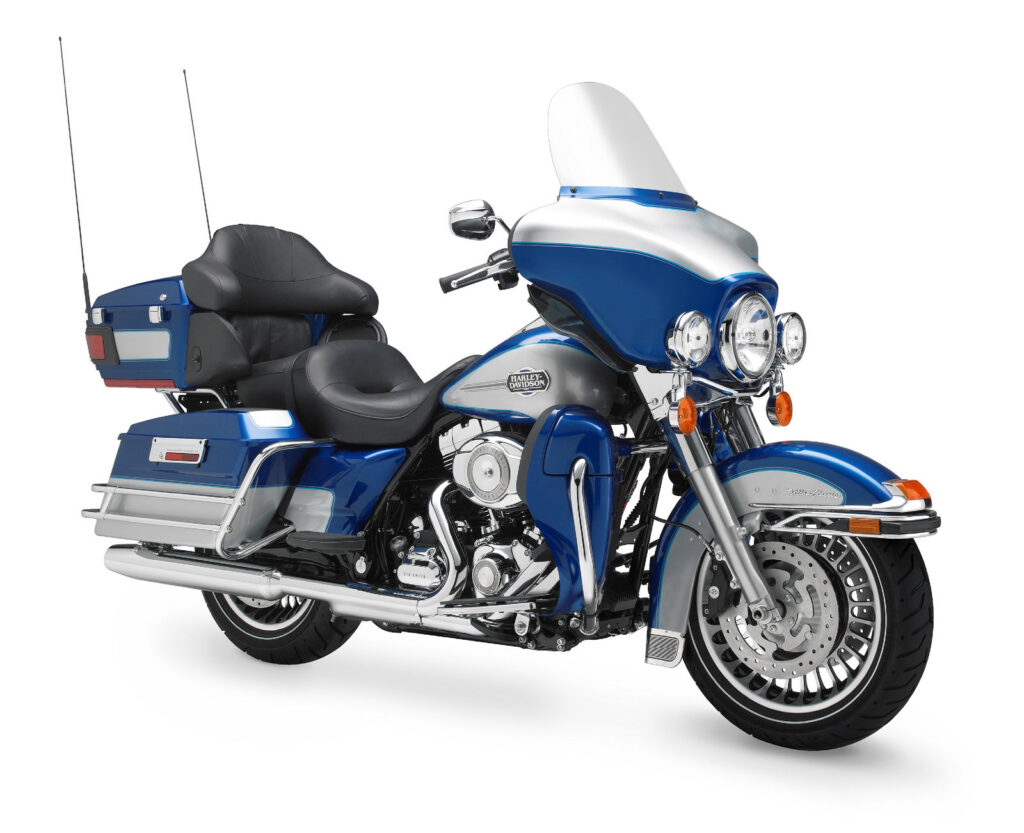

These are the known mechanical and performance specifications for your 2010 Harley-Davidson FLHTCU Ultra Classic Electra Glide.
Basic Specs


Year2010
MakeHarley-Davidson
ModelHarley-Davidson FLHTCU Ultra Classic Electra Glide
TypeTouring
Cost
Engine
Displacement1584.00 ccm (96.66 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder2
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
Exhaust2-1-2 chrome exhaust with dual mufflers and taper end caps
Lubrication
CoolingAir
Performance
Horespower
Torque127.00 Nm (12.9 kgf-m or 93.7 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity22.70 litres (6.00 gallons)
Emissions
Chassis
Frame TypeMild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Rake26.0°
Trail170 mm (6.7 inches)
Front Suspension41.3mm telescopic, triple circuit damping
Front Travel117 mm (4.6 inches)
Rear SuspensionAir-adjustable
Rear Travel76 mm (3.0 inches)
Seat
Seat Height740 mm (29.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,515 mm (99.0 inches)
Total Width
Ground Clearance150 mm (5.9 inches)
Wheelbase1,625 mm (64.0 inches)
Dry Weight400.0 kg (881.8 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre130/80-B17
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. 4-piston fixed caliper
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 4-piston fixed caliper
Rear Brake Diameter300 mm (11.8 inches)
Wheels
Comments
Black powder-coated engine with chrome treatment covers; “Batwing”,fork-mounted fairing; Chrome, low-profile fuel tank console; Clear-lens reflectoroptics headlamp; Adjustable fairing-mounted air deflectors; Full-length height adjustable rider footboards; Full-length height adjustable passenger footboards; Stainless steel, classic touring handlebars; One-piece, two-up Electra Glide® classic comfort stitch seat; Passenger backrest; Clear, Lexan® windshield; Injection-moulded GTX® saddlebags with locks; Deluxe fibreglass Tour-Pak™; Harman-Kardon® Advanced Audio System; Intercom; Cruise control; ABS as standard
