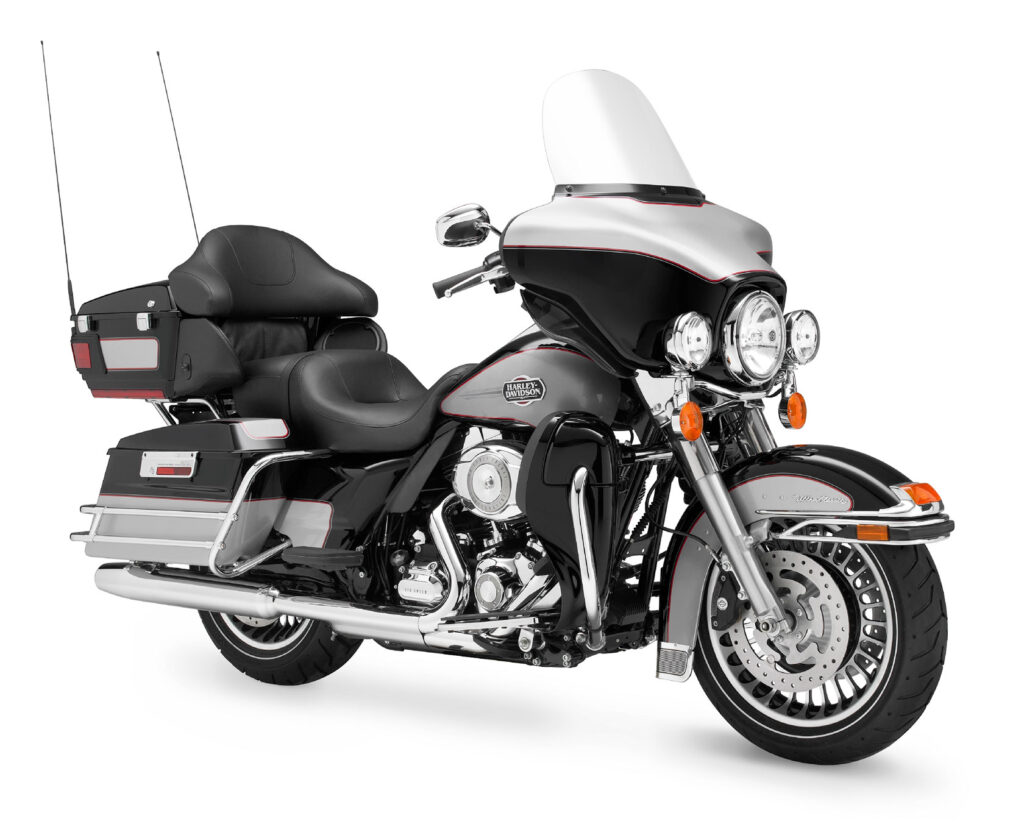

These are the known mechanical and performance specifications for your 2011 Harley-Davidson FLHTCU Ultra Classic Electra Glide.
Basic Specs
Year2011
MakeHarley-Davidson
ModelHarley-Davidson FLHTCU Ultra Classic Electra Glide
TypeTouring
CostUS$ 20999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1584.00 ccm (96.66 cubic inches)
TypeTwin Cam 96.
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder2
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
Exhaust2-1-2 chrome exhaust with dual mufflers and taper end caps
LubricationPressurized, dry-sump
CoolingAir
Performance
Horespower
Torque126.00 Nm (12.8 kgf-m or 92.9 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity22.70 litres (6.00 gallons)
Emissions
Chassis
Frame TypeMild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Rake26.0°
Trail170 mm (6.7 inches)
Front Suspension41.3mm telescopic, triple circuit damping
Front Travel117 mm (4.6 inches)
Rear SuspensionAir-adjustable
Rear Travel76 mm (3.0 inches)
Seat
Seat Height739 mm (29.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,515 mm (99.0 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,625 mm (64.0 inches)
Dry Weight386.5 kg (852.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre130/80-B17
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. 4-piston fixed caliper. ABS optional.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 4-piston fixed caliper. ABS optional.
Rear Brake Diameter300 mm (11.8 inches)
WheelsBlack, 28-spoke Cast Aluminum
