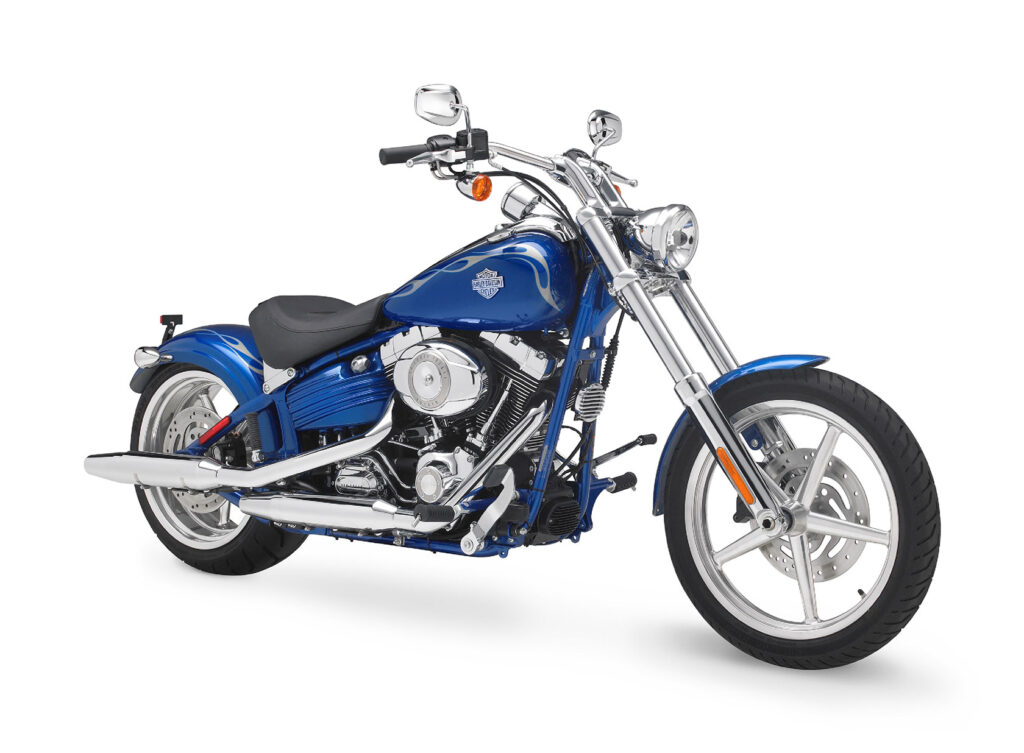

These are the known mechanical and performance specifications for your 2010 Harley-Davidson FXCWC Softail Rocker C.
Basic Specs


Year2010
MakeHarley-Davidson
ModelHarley-Davidson FXCWC Softail Rocker C
TypeCustom / cruiser
CostUS$ 19499. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1584.00 ccm (96.66 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder2
FuelingInjection. ESPFI
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
Lubrication
CoolingAir
Performance
Horespower
Torque121.00 Nm (12.3 kgf-m or 89.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.90 litres (4.99 gallons)
Emissions
Chassis
Frame TypeMild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Rake36.0°
Trail157 mm (6.2 inches)
Front Suspension49mm telescopic
Front Travel127 mm (5.0 inches)
Rear SuspensionHidden, horizontal-mounted, coil-over
Rear Travel79 mm (3.1 inches)
Seat
Seat Height700 mm (27.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,415 mm (95.1 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,760 mm (69.3 inches)
Dry Weight307.0 kg (676.8 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-R19
Rear Tire/Tyre240/40-R18
Front BrakesSingle disc. 4-piston
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter292 mm (11.5 inches)
Wheels
Comments
Black powder-coated engine with chrome treatment covers; Colour-matched“horseshoe” oil tank with chrome external oil lines; Chrome, stretch low-profile tank console; Cloisonne 3-D tank medallions; Chrome, fire-truck inspired bullet headlamp; Bullet style LED turn signals; Adjustable, V-bar riser; Forward-mounted rider footpegs; Standard passenger footpegs; Chrome, pull-back internally-wired handlebars; Solo style “Trick™” two-in-one seat; Low-profile front fender; Colour-matched frame and swingarm
