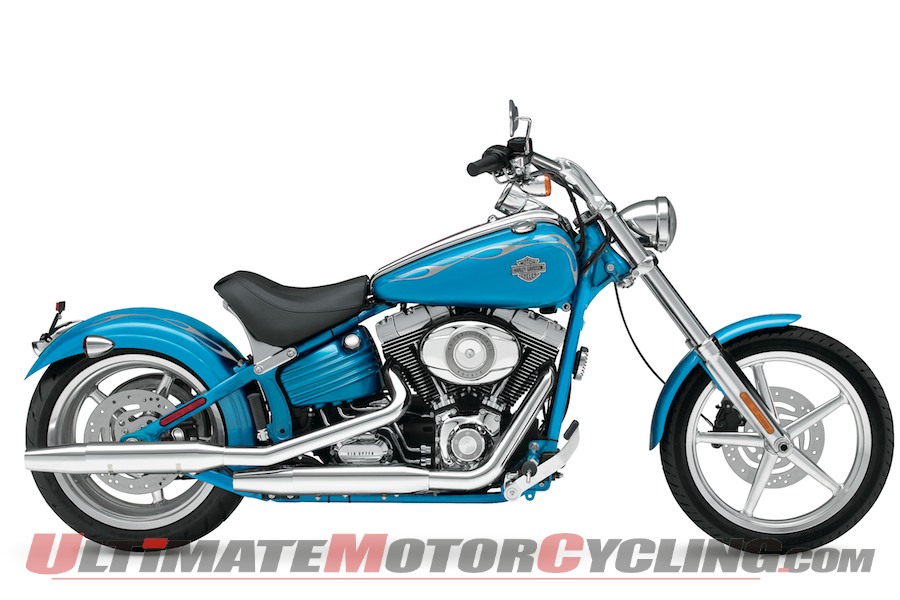

These are the known mechanical and performance specifications for your 2011 Harley-Davidson FXCWC Softail Rocker C.
Basic Specs
Year2011
MakeHarley-Davidson
ModelHarley-Davidson FXCWC Softail Rocker C
TypeCustom / cruiser
CostUS$ 19499. Euro 21195. UK £ 16310. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1584.00 ccm (96.66 cubic inches)
TypeAir-cooled, Twin Cam 96B. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder.
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. ESPFI
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
LubricationPressurized, dry-sump
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
Clutch9-plate, wet
DrivelinePrimary Drive: Chain, 34/46 ratio. Final Drive: Belt, 32/66 ratio
Performance
Horespower
Torque125.00 Nm (12.7 kgf-m or 92.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.90 litres (4.99 gallons)
Emissions
Chassis
Frame TypeMild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded. Swingarm: Mild steel, round tube sections, forged junctions; MIG welded.
Rake36.0°
Trail157 mm (6.2 inches)
Front Suspension49mm telescopic
Front Travel127 mm (5.0 inches)
Rear SuspensionHidden, horizontal-mounted, coil-over
Rear Travel79 mm (3.1 inches)
Seat
Seat Height696 mm (27.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,415 mm (95.1 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,758 mm (69.2 inches)
Dry Weight315.7 kg (696.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-R19
Rear Tire/Tyre240/40-R18
Front BrakesSingle disc. 4-piston. Patented, uniform expansion rotors
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc. 2-piston. Patented, uniform expansion rotors
Rear Brake Diameter292 mm (11.5 inches)
WheelsPolished, 5-spoke Cast Aluminum
