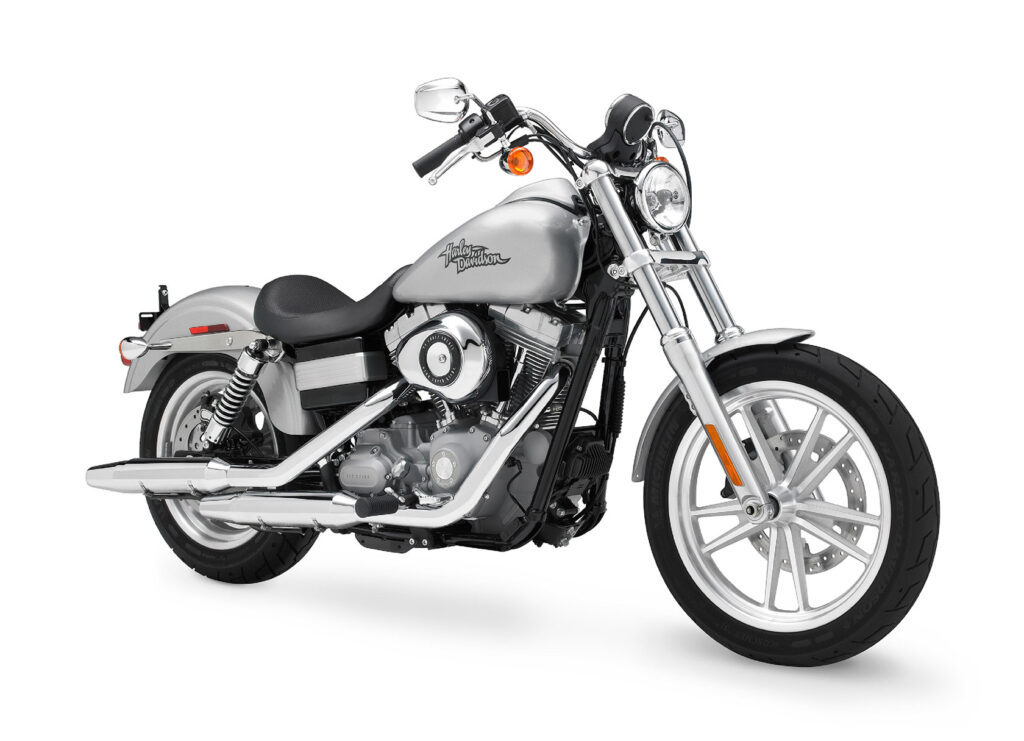

2010 Harley-Davidson FXD Dyna Super Glide Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Harley-Davidson FXD Dyna Super Glide.

Basic Specs

Year2010
MakeHarley-Davidson
ModelHarley-Davidson FXD Dyna Super Glide
CostUS$ 11999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1584.00 ccm (96.66 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
LubricationPressurized, dry-sump
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
Clutch9-plate, wet
Driveline

Performance

Horespower
Torque123.00 Nm (12.5 kgf-m or 90.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.80 litres (4.97 gallons)
Emissions

Chassis

Frame TypeMild steel, tubular frame; rectangular section backbone; stamped,
Rake29.0°
Trail
Front Suspension49mm with polished aluminium fork
Front Travel127 mm (5.0 inches)
Rear SuspensionCoil-over shock
Rear Travel79 mm (3.1 inches)
Seat
Seat Height668 mm (26.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,231 mm (48.5 inches)
Total Length2,357 mm (92.8 inches)
Total Width932 mm (36.7 inches)
Ground Clearance116 mm (4.6 inches)
Wheelbase1,625 mm (64.0 inches)
Dry Weight295.0 kg (650.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FXD Dyna Super Glide. This Custom / cruiser model is powered by a V2, four-stroke engine with 1584.00 ccm (96.66 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its horsepower and 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FXD Dyna Super Glide is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, Mild steel, tubular frame; rectangular section backbone; stamped,. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Harley-Davidson FXD Dyna Super Glide was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
