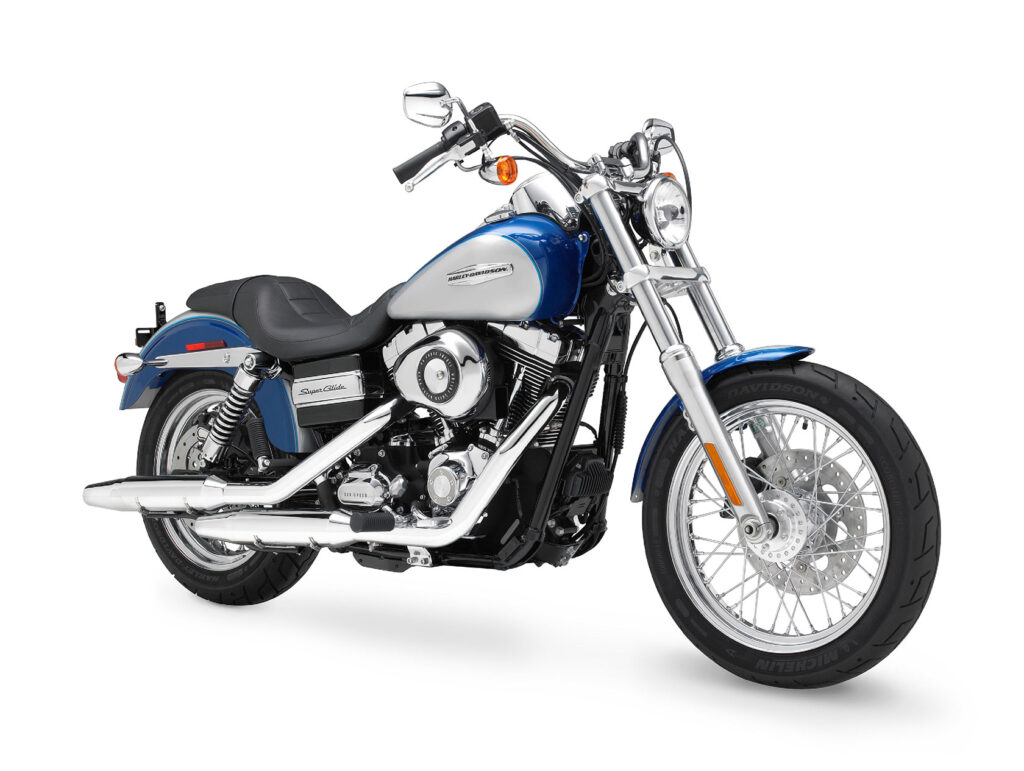

2010 Harley-Davidson FXDC Dyna Super Glide Custom Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Harley-Davidson FXDC Dyna Super Glide Custom.

Basic Specs

Year2010
MakeHarley-Davidson
ModelHarley-Davidson FXDC Dyna Super Glide Custom
Cost

Engine

Displacement1584.00 ccm (96.66 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
LubricationPressurized, dry-sump
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
Clutch9-plate, wet
Driveline

Performance

Horespower
Torque123.00 Nm (12.5 kgf-m or 90.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.80 litres (4.97 gallons)
Emissions

Chassis

Frame TypeMild steel, tubular frame; rectangular section backbone; stamped,
Rake29.0°
Trail119 mm (4.7 inches)
Front Suspension49mm with polished aluminium fork
Front Travel127 mm (5.0 inches)
Rear SuspensionCoil-over shock
Rear Travel79 mm (3.1 inches)
Seat
Seat Height710 mm (28.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,345 mm (92.3 inches)
Total Width
Ground Clearance120 mm (4.7 inches)
Wheelbase1,625 mm (64.0 inches)
Dry Weight295.0 kg (650.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/90-19
Rear Tire/Tyre160/70-B17
Front BrakesSingle disc
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter292 mm (11.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FXDC Dyna Super Glide Custom. This Custom / cruiser model is powered by a V2, four-stroke engine with 1584.00 ccm (96.66 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its horsepower and 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FXDC Dyna Super Glide Custom is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 100/90-19 and the rear is 160/70-B17 . The entire package is supported by the frame, Mild steel, tubular frame; rectangular section backbone; stamped,. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Harley-Davidson FXDC Dyna Super Glide Custom was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

New black powder-coated engine with chrome treatment covers; Low-profile frontfender; Sport wrap-around rear fender with painted supports; Chrome, low-profile fuel tank console; Chrome, isolated riser; Mid-mounted rider footpegs; Standard passenger footpegs; Stainless steel, pull-back handlebars; “Teardrop” air cleaner assembly; One-piece, two-up Dyna® classic seat; New Michelin® Scorcher™ tyres
