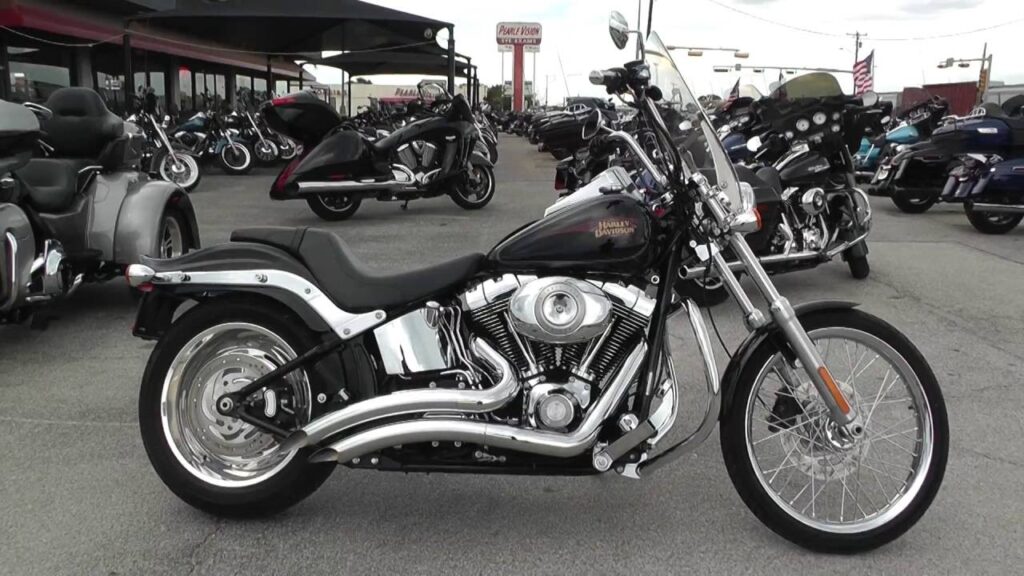

These are the known mechanical and performance specifications for your 2010 Harley-Davidson FXSTC Softail Custom.
Basic Specs
Year2010
MakeHarley-Davidson
ModelHarley-Davidson FXSTC Softail Custom
TypeCustom / cruiser
CostUS$ 16999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1584.00 ccm (96.66 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder2
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
LubricationPressurized, dry-sump
CoolingAir
Performance
Horespower
Torque127.00 Nm (12.9 kgf-m or 93.7 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption6.72 litres/100 km (14.9 km/l or 35.00 mpg)
Fuel Capacity19.70 litres (5.20 gallons)
Emissions155.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeMild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded.
Rake32.3°
Trail127 mm (5.0 inches)
Front Suspension41.30 mm telescopic, chrome dust covers
Front Travel142 mm (5.6 inches)
Rear SuspensionHidden, horizontal-mounted, coil-over
Rear Travel109 mm (4.3 inches)
Seat
Seat Height670 mm (26.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,313 mm (51.7 inches)
Total Length2,400 mm (94.5 inches)
Total Width927 mm (36.5 inches)
Ground Clearance129 mm (5.1 inches)
Wheelbase1,635 mm (64.4 inches)
Dry Weight304.0 kg (670.2 pounds)
Wet Weight319.0 kg (703.3 pounds)
Wheels & Brakes
Front Tire/TyreMT90-21
Rear Tire/Tyre200/55-R17
Front BrakesSingle disc. 4-piston
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter292 mm (11.5 inches)
Wheels
