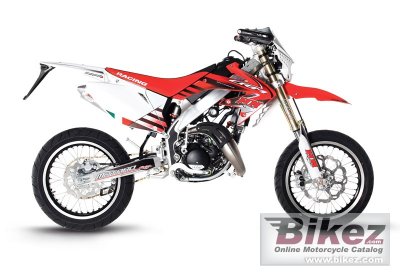

These are the known mechanical and performance specifications for your 2010 HM Derapage RR 10.
Basic Specs
Year2010
MakeHM
ModelHM Derapage RR 10
TypeSuper motard
Cost Euro 3750. Prices depend on country, taxes, accessories, etc.
Engine
Displacement49.70 ccm (3.03 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression12.0:1
Bore/Stroke40.3 x 39.0 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor. Dell´Orto PHBN 16
Ignition
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchMulitplate in oil bath
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity6.00 litres (1.59 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height860 mm (33.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,140 mm (44.9 inches)
Total Length2,080 mm (81.9 inches)
Total Width830 mm (32.7 inches)
Ground Clearance273 mm (10.7 inches)
Wheelbase
Dry Weight86.0 kg (189.6 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre100/80-17
Rear Tire/Tyre130/70-17
Front BrakesSingle disc. 2 piston caliper
Front Brake Diameter290 mm (11.4 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
HM is an abbreviation of Honda Montesa in Italy.
