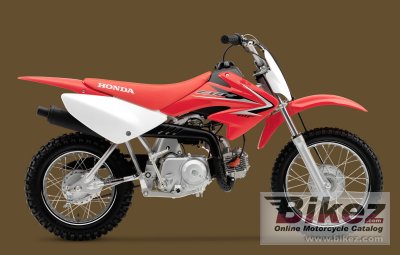

These are the known mechanical and performance specifications for your 2010 Honda CRF70F.
Basic Specs
Engine
Displacement72.00 ccm (4.39 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke47.0 x 41.4 mm (1.9 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor. 13mm piston-valve carburator
IgnitionCD
Exhaust
Lubrication
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity4.92 litres (1.30 gallons)
Emissions
Chassis
Frame Type
Rake27.0°
Trail62 mm (2.4 inches)
Front Suspension27.0mm telescopic fork
Front Travel81 mm (3.2 inches)
Rear SuspensionSingle-shock
Rear Travel89 mm (3.5 inches)
Seat
Seat Height663 mm (26.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance178 mm (7.0 inches)
Wheelbase1,067 mm (42.0 inches)
Dry Weight
Wet Weight63.0 kg (139.0 pounds)
Wheels & Brakes
Front Tire/Tyre2.50-14
Rear Tire/Tyre3.00-.12
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
Model ID: CRF70F
