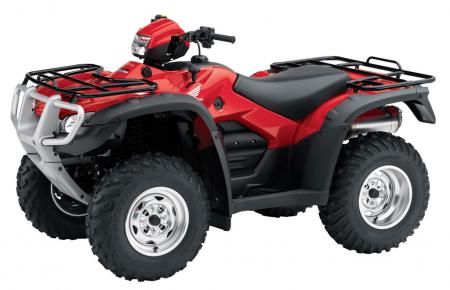

These are the known mechanical and performance specifications for your 2010 Honda FourTrax Foreman Rubicon.
Basic Specs
Year2010
MakeHonda
ModelHonda FourTrax Foreman Rubicon
TypeATV
CostUS$ 8599. Prices depend on country, taxes, accessories, etc.
Engine
Displacement499.00 ccm (30.45 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke92.0 x 75.0 mm (3.6 x 3.0 inches)
Valves/Cylinder
FuelingCarburettor. 36mm constant velocity carburator
IgnitionCD with electronic advance
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.14 litres (4.00 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionIndependent double-wishbone
Front Travel170 mm (6.7 inches)
Rear SuspensionSwingarm with dual shock absorbers
Rear Travel170 mm (6.7 inches)
Seat
Seat Height861 mm (33.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,179 mm (46.4 inches)
Total Length2,108 mm (83.0 inches)
Total Width1,189 mm (46.8 inches)
Ground Clearance191 mm (7.5 inches)
Wheelbase1,285 mm (50.6 inches)
Dry Weight
Wet Weight285.8 kg (630.0 pounds)
Wheels & Brakes
Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesSingle disc
Front Brake Diameter180 mm (7.1 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
Model ID: TRX500FA
