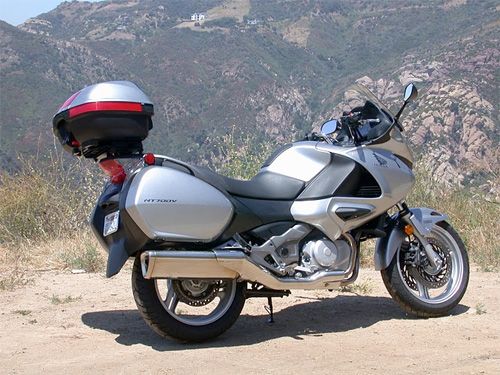

2010 Honda NT 700V ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Honda NT 700V ABS.

Basic Specs

Year2010
MakeHonda
ModelHonda NT 700V ABS
CostUS$ 10999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement680.00 ccm (41.49 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke81.0 x 66.0 mm (3.2 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI with automatic enrichment circuit, 40mm throttle bodies and 12-hole injectors
IgnitionDigital transistorized with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption4.70 litres/100 km (21.3 km/l or 50.05 mpg)
Fuel Capacity19.68 litres (5.20 gallons)
Emissions109.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake28.0°
Trail115 mm (4.5 inches)
Front Suspension41mm telescopic fork
Front Travel114 mm (4.5 inches)
Rear SuspensionSingle shock with spring-preload adjustability
Rear Travel122 mm (4.8 inches)
Seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,476 mm (58.1 inches)
Dry Weight
Wet Weight258.1 kg (569.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre150/70-ZR17
Front BrakesDouble disc. ABS
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc. ABS
Rear Brake Diameter276 mm (10.9 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda NT 700V ABS. This Sport touring model is powered by a V2, four-stroke engine with 680.00 ccm (41.49 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. PGM-FI with automatic enrichment circuit, 40mm throttle bodies and 12-hole injectors allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda NT 700V ABS is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 150/70-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS front brakes and Single disc. ABS rear brakes. The Honda NT 700V ABS was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: NT700VAA
