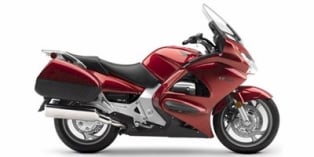

2010 Honda ST1300 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Honda ST1300.

Basic Specs

Year2010
MakeHonda
ModelHonda ST1300
TypeSport touring
Cost
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement1261.00 ccm (76.95 cubic inches)
Type
DetailsV4, four-stroke
Max RPM
Compression10.8:1
Bore/Stroke78.0 x 66.0 mm (3.1 x 2.6 inches)
Valves/Cylinder4
Fueling
IgnitionComputer-controlled digital with three-dimensional mapping and electronic advance
Exhaust
Lubrication
CoolingLiquid
Spark Plugs

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline
Shaft drive (cardan) Clutch Plates

Performance

Horespower
Torque
Top Speed
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity29.14 litres (7.70 gallons)
Emissions
Fuel Bottles & Cans

Chassis

Frame Type
Rake26.0°
Trail98 mm (3.9 inches)
Front Suspension45mm HMAS cartridge fork
Front Travel117 mm (4.6 inches)
Rear SuspensionHMAS gas-charged single shock with five-position spring-preload adjustability
Rear Travel122 mm (4.8 inches)
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,491 mm (58.7 inches)
Dry Weight
Wet Weight326.1 kg (719.0 pounds)
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre120/70-ZR18
Rear Tire/Tyre170/60-ZR17
Front BrakesDouble disc
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter316 mm (12.4 inches)
Wheels
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the Honda ST1300. This Sport touring model is powered by a V4, four-stroke engine with 1261.00 ccm (76.95 cubic inches) of actual displacement before 10.8:1 compression. Fueling is metered via allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda ST1300 is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR18 and the rear is 170/60-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Honda ST1300 was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: ST1300
