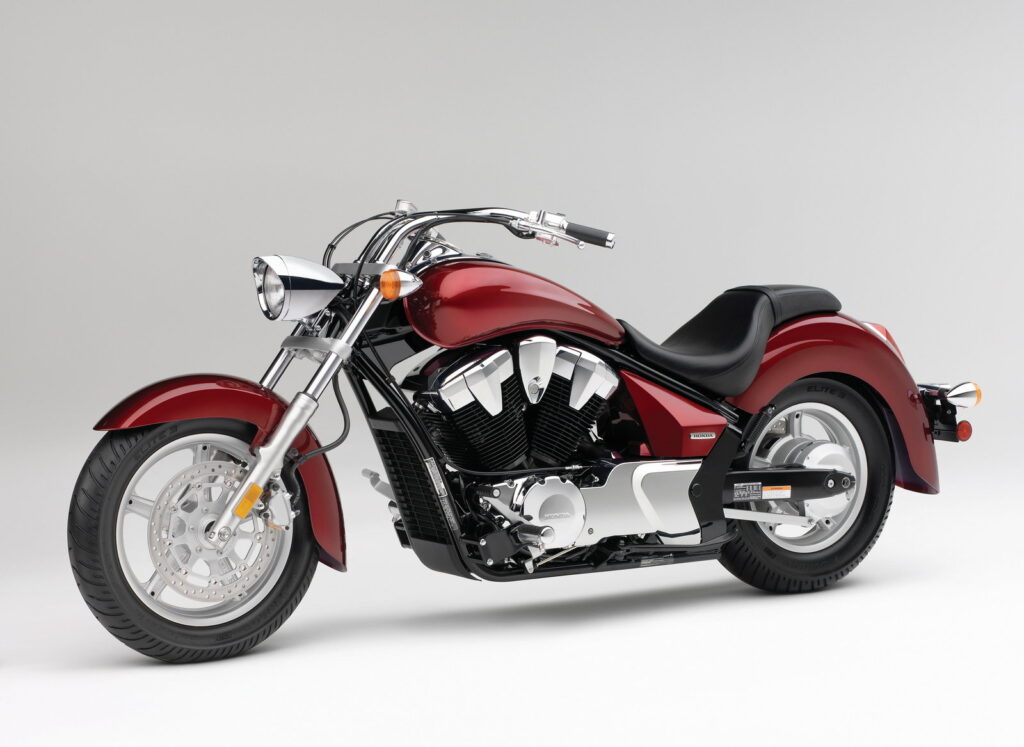

These are the known mechanical and performance specifications for your 2010 Honda Stateline.
Basic Specs
Year2010
MakeHonda
ModelHonda Stateline
TypeCustom / cruiser
CostUS$ 11699. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1312.00 ccm (80.06 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke2,273.3 x 2,649.2 mm (89.5 x 104.3 inches)
Valves/Cylinder3
FuelingInjection. PGM-FI with automatic enrichment circuit, one 38mm throttle body
IgnitionDigital with 3-D mapping, two spark plugs per cylinder
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity16.65 litres (4.40 gallons)
Emissions
Chassis
Frame Type
Rake33.0°
Trail118 mm (4.6 inches)
Front Suspension41mm fork; 4.0 inches travel
Front Travel
Rear SuspensionSingle shock; 3.9 inches travel
Rear Travel
Seat
Seat Height678 mm (26.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,781 mm (70.1 inches)
Dry Weight
Wet Weight303.9 kg (670.0 pounds)
Wheels & Brakes
Front Tire/Tyre140/80-17
Rear Tire/Tyre170/80-15
Front BrakesSingle disc. 2-piston caliper
Front Brake Diameter336 mm (13.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter296 mm (11.7 inches)
Wheels
Comments
Model ID: VT1300CR
