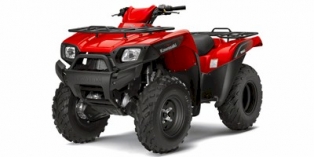

2010 Kawasaki Brute Force 650 4x4 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Kawasaki Brute Force 650 4x4.

Basic Specs

Year2010
MakeKawasaki
ModelKawasaki Brute Force 650 4x4
TypeATV
CostUS$ 7549. Prices depend on country, taxes, accessories, etc.

Engine

Displacement633.00 ccm (38.63 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.9:1
Bore/Stroke80.0 x 63.0 mm (3.1 x 2.5 inches)
Valves/Cylinder
FuelingCarburettor. (2) Keihin CVKR-D32
IgnitionDC-CDI
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.16 litres (4.80 gallons)
Emissions

Chassis

Frame TypeDouble cradle, tubular steel
Rake
Trail
Front SuspensionMacPherson / 6.7 in.
Front Travel
Rear SuspensionAluminum swingarm and single shock / 7.2 in.
Rear Travel
Seat
Seat Height861 mm (33.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,184 mm (86.0 inches)
Total Width1,212 mm (47.7 inches)
Ground Clearance229 mm (9.0 inches)
Wheelbase1,293 mm (50.9 inches)
Dry Weight
Wet Weight294.1 kg (648.3 pounds)

Wheels & Brakes

Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesDouble disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Brute Force 650 4x4. This ATV model is powered by a V2, four-stroke engine with 633.00 ccm (38.63 cubic inches) of actual displacement before 9.9:1 compression. Fueling is metered via Carburettor. (2) Keihin CVKR-D32 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki Brute Force 650 4x4 is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 25/8-12 and the rear is 25/10-12 . The entire package is supported by the frame, Double cradle, tubular steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Double disc rear brakes. The Kawasaki Brute Force 650 4x4 was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Dual-range CVT plus reverse with Kawasaki Engine Brake Control. 2x4/4x4 shaft.
