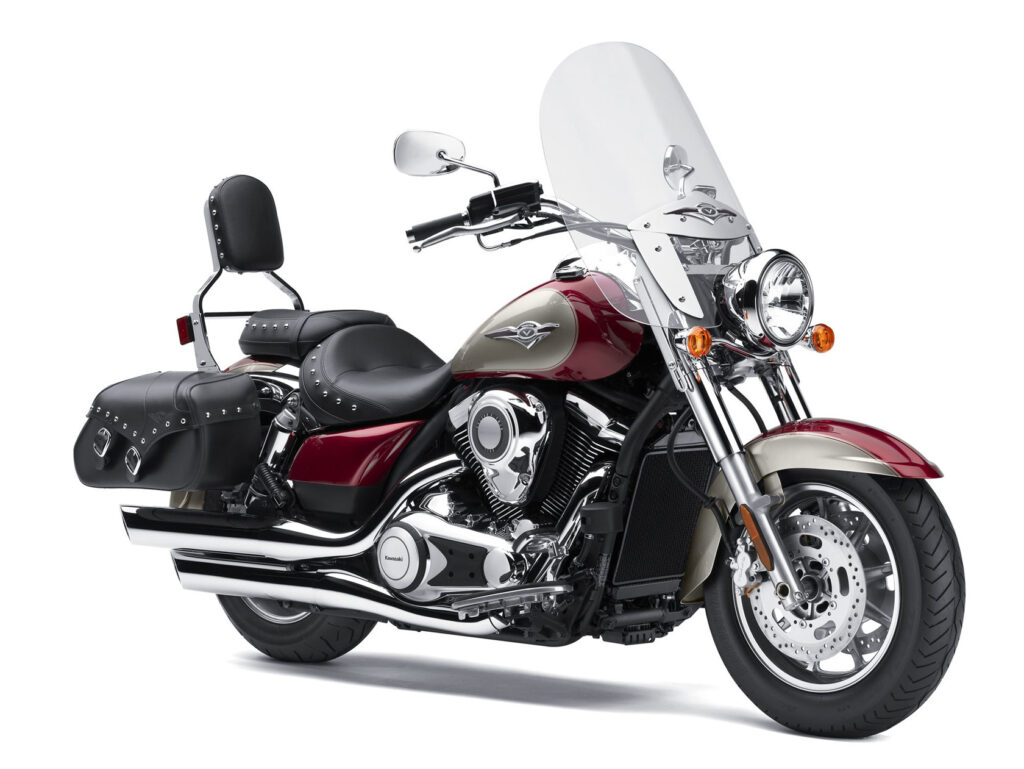

2010 Kawasaki VN1700 Classic Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Kawasaki VN1700 Classic.

Basic Specs

Year2010
MakeKawasaki
ModelKawasaki VN1700 Classic
Cost

Engine

Displacement1700.00 ccm (103.73 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke102.0 x 104.0 mm (4.0 x 4.1 inches)
Valves/Cylinder4
FuelingInjection. Fuel injection ø42 mm x 2
Ignition
Exhaust
LubricationForced lubrication, semi-dry sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchWet multi-disc, manual
Driveline

Performance

Horespower
Torque135.00 Nm (13.8 kgf-m or 99.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.06 litres (5.30 gallons)
Emissions

Chassis

Frame TypeDouble-cradle, steel
Rake30.0°
Trail169 mm (6.7 inches)
Front Suspension43mm hydraulic fork
Front Travel140 mm (5.5 inches)
Rear SuspensionSwingarm with twin air-assisted shocks, with 4-way rebound damping
Rear Travel79 mm (3.1 inches)
Seat
Seat Height721 mm (28.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,156 mm (45.5 inches)
Total Length2,499 mm (98.4 inches)
Total Width1,026 mm (40.4 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,666 mm (65.6 inches)
Dry Weight
Wet Weight349.0 kg (769.4 pounds)

Wheels & Brakes

Front Tire/Tyre130/90-16
Rear Tire/Tyre170/70-16
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki VN1700 Classic. This Custom / cruiser model is powered by a V2, four-stroke engine with 1700.00 ccm (103.73 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Injection. Fuel injection ø42 mm x 2 allowing this machine to produce its horsepower and 135.00 Nm (13.8 kgf-m or 99.6 ft.lbs) torque. According to our records engine heat of the Kawasaki VN1700 Classic is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 130/90-16 and the rear is 170/70-16 . The entire package is supported by the frame, Double-cradle, steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Kawasaki VN1700 Classic was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
