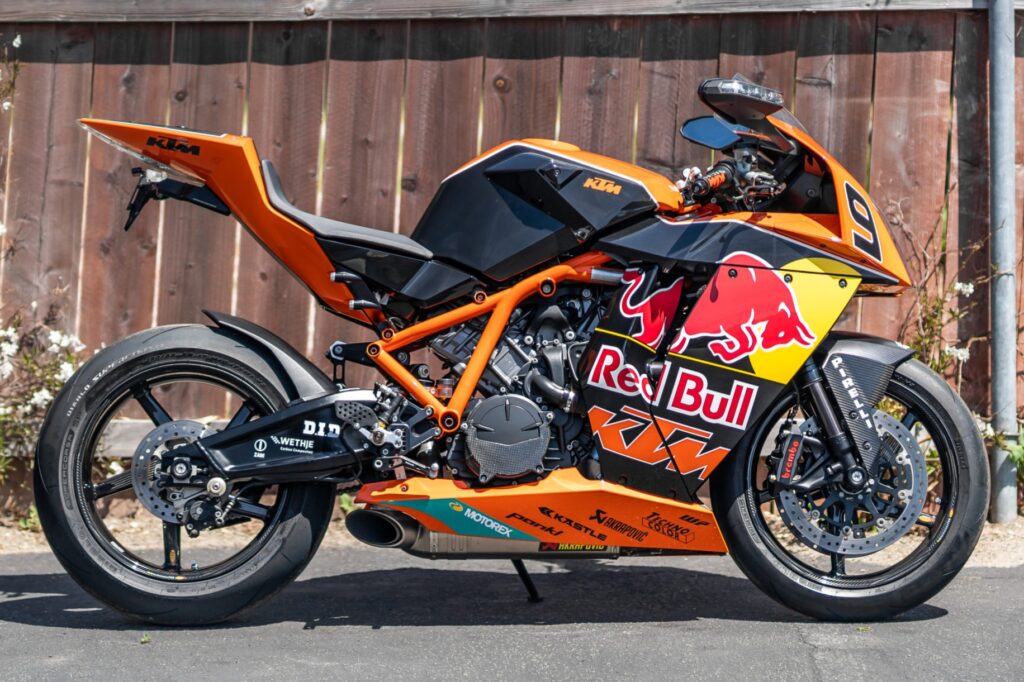

These are the known mechanical and performance specifications for your 2010 KTM 1190 RC8 R Red Bull Limited Edition.
ModelKTM 1190 RC8 R Red Bull Limited Edition
Displacement1195.00 ccm (72.92 cubic inches)
Bore/Stroke105.0 x 69.0 mm (4.1 x 2.7 inches)
FuelingInjection. Keihin EFI (throttle body 52 mm)
LubricationPressure lubrication with 3 Eaton pumps
ClutchWet mDouble disk clutch, operated hydraulically
Horespower167.62 HP (122.4 kW)
Torque123.00 Nm (12.5 kgf-m or 90.7 ft.lbs)
Fuel Economy & Polution
Fuel Capacity16.50 litres (4.36 gallons)
Frame TypeChromium-Molybdenum trellis frame, powder-coated
Trail97 mm (3.8 inches)
Front SuspensionWP-USD 43 mm fork
Front Travel120 mm (4.7 inches)
Rear Travel120 mm (4.7 inches)
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height825 mm (32.5 inches) If adjustable, highest setting.
Ground Clearance110 mm (4.3 inches)
Wheelbase1,425 mm (56.1 inches)
Dry Weight182.0 kg (401.2 pounds)
Wheels & Brakes
Front BrakesDouble disc. Brem
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
It appears you're interested in specifications for the KTM 1190 RC8 R Red Bull Limited Edition. This Sport model is powered by a Twin, four-stroke engine with 1195.00 ccm (72.92 cubic inches) of actual displacement before 13.5:1 compression. Fueling is metered via Injection. Keihin EFI (throttle body 52 mm) allowing this machine to produce its 167.62 HP (122.4 kW) horsepower and 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) torque. According to our records engine heat of the KTM 1190 RC8 R Red Bull Limited Edition is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 190/55-17 . The entire package is supported by the frame, Chromium-Molybdenum trellis frame, powder-coated. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Brem front brakes and Single disc rear brakes. The KTM 1190 RC8 R Red Bull Limited Edition was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
