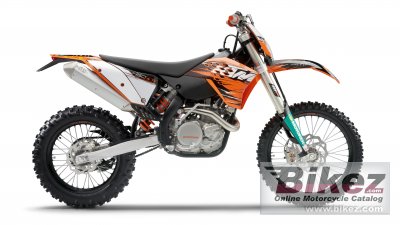

2010 KTM 450 EXC Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 KTM 450 EXC.

Basic Specs

Year2010
MakeKTM
ModelKTM 450 EXC
Cost

Engine

Displacement449.30 ccm (27.42 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.9:1
Bore/Stroke95.0 x 63.4 mm (3.7 x 2.5 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin FCR-MX 39
IgnitionKokusan
ExhaustAluminium
LubricationPressure lubrication with 3 oil pumps
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet mDouble disk clutch, operated hydraulically
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.50 litres (2.51 gallons)
Emissions

Chassis

Frame TypeCentral double-cradle-type 25CrMo4 steel
Rake26.5°
Trail
Front SuspensionWP USD Ø 48 mm (1.89
Front Travel300 mm (11.8 inches)
Rear SuspensionWP PDS shock absorber
Rear Travel335 mm (13.2 inches)
Seat
Seat Height985 mm (38.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance380 mm (15.0 inches)
Wheelbase1,475 mm (58.1 inches)
Dry Weight113.9 kg (251.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre140/80-18
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the KTM 450 EXC. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 449.30 ccm (27.42 cubic inches) of actual displacement before 11.9:1 compression. Fueling is metered via Carburettor. Keihin FCR-MX 39 allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 450 EXC is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 140/80-18 . The entire package is supported by the frame, Central double-cradle-type 25CrMo4 steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The KTM 450 EXC was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

KTM´s Offroad Competition ECX model series.
