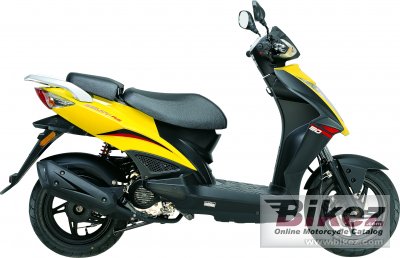

2010 Kymco Agility RS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Kymco Agility RS.

Basic Specs

Year2010
MakeKymco
ModelKymco Agility RS
Cost

Engine

Displacement49.00 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression8.0:1
Bore/Stroke39.0 x 41.0 mm (1.5 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque3.20 Nm (0.3 kgf-m or 2.4 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity3.50 litres (0.92 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionSingle shock
Rear Travel
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,940 mm (76.4 inches)
Total Width
Ground Clearance140 mm (5.5 inches)
Wheelbase1,325 mm (52.2 inches)
Dry Weight
Wet Weight

Wheels & Brakes

Front Tire/Tyre2.50-17
Rear Tire/Tyre2.75-17
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter110 mm (4.3 inches)
Wheels

Comments

It appears you're interested in specifications for the Kymco Agility RS. This Scooter model is powered by a Single cylinder, four-stroke engine with 49.00 ccm (2.99 cubic inches) of actual displacement before 8.0:1 compression. Fueling is metered via Carburettor allowing this machine to produce its horsepower and 3.20 Nm (0.3 kgf-m or 2.4 ft.lbs) torque. According to our records engine heat of the Kymco Agility RS is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 2.50-17 and the rear is 2.75-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Kymco Agility RS was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Kymco is made by Kwang Yang Motor Company, Taiwan.
