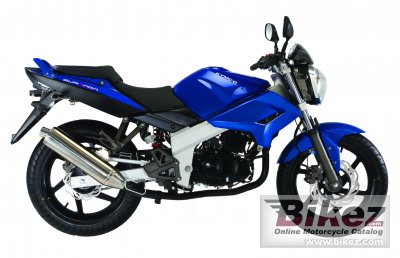

2010 Kymco KR Naked 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Kymco KR Naked 125.

Basic Specs

Year2010
MakeKymco
ModelKymco KR Naked 125
Cost

Engine

Displacement124.10 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke56.5 x 49.5 mm (2.2 x 1.9 inches)
Valves/Cylinder4
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchMulti-plate clutch in oil bath
Driveline

Performance

Horespower12.80 HP (9.3 kW)
Torque9.90 Nm (1.0 kgf-m or 7.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity13.50 litres (3.57 gallons)
Emissions

Chassis

Frame TypeAluminium frame
Rake
Trail
Front SuspensionHydraulic forks
Front Travel
Rear SuspensionSingle rear damper, preload adjustable .
Rear Travel
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,057 mm (81.0 inches)
Total Width790 mm (31.1 inches)
Ground Clearance170 mm (6.7 inches)
Wheelbase1,355 mm (53.3 inches)
Dry Weight
Wet Weight130.0 kg (286.6 pounds)

Wheels & Brakes

Front Tire/Tyre110/80-17
Rear Tire/Tyre140/70-17
Front BrakesSingle disc
Front Brake Diameter276 mm (10.9 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Kymco KR Naked 125. This Naked bike model is powered by a Single cylinder, four-stroke engine with 124.10 ccm (7.57 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor allowing this machine to produce its 12.80 HP (9.3 kW) horsepower and 9.90 Nm (1.0 kgf-m or 7.3 ft.lbs) torque. According to our records engine heat of the Kymco KR Naked 125 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/80-17 and the rear is 140/70-17 . The entire package is supported by the frame, Aluminium frame . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Kymco KR Naked 125 was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
