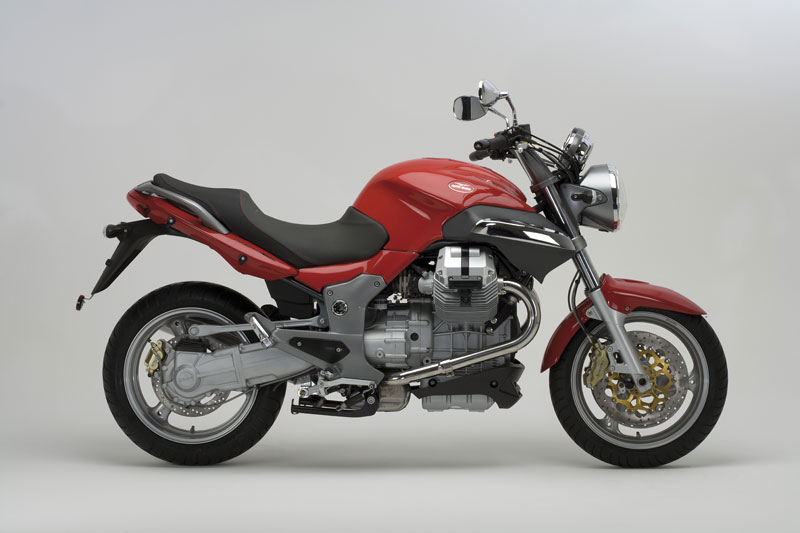

These are the known mechanical and performance specifications for your 2010 Moto Guzzi Breva 850.
Basic Specs
Engine
Displacement877.00 ccm (53.51 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke92.0 x 66.0 mm (3.6 x 2.6 inches)
Valves/Cylinder
FuelingInjection. Magneti Marelli
IgnitionInductive discharge, digitally controlled, electronic twin spark ignition
ExhaustStainless steel, 2 in 1, with three ways catalyser and Lambda probe oxygen sensor
LubricationSplash
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchDual disc, dry
Driveline
Performance
Horespower71.07 HP (51.9 kW)
Torque66.00 Nm (6.7 kgf-m or 48.7 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity23.00 litres (6.08 gallons)
Emissions
Chassis
Frame TypeDouble cradle, in high tensile strenght tubular steel
Rake25.3°
Trail120 mm (4.7 inches)
Front SuspensionTelescopic hydraulic fork with 45 mm, preload adjustable
Front Travel120 mm (4.7 inches)
Rear SuspensionSingle arm suspension progressive linkage, rear shock absorber adjustable in rebound ad pre-load (hydraulic).
Rear Travel140 mm (5.5 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,125 mm (44.3 inches)
Total Length2,195 mm (86.4 inches)
Total Width
Ground Clearance190 mm (7.5 inches)
Wheelbase1,495 mm (58.9 inches)
Dry Weight231.0 kg (509.3 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre110/70-ZR17
Rear Tire/Tyre130/80-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter260 mm (10.2 inches)
Wheels
