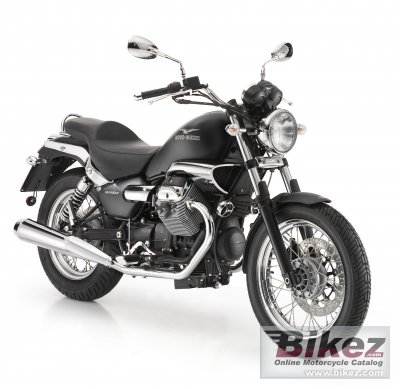

These are the known mechanical and performance specifications for your 2010 Moto Guzzi Nevada Classic 750.
Basic Specs
Engine
Displacement744.00 ccm (45.40 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke80.0 x 74.0 mm (3.1 x 2.9 inches)
Valves/Cylinder2
FuelingInjection. Weber Weber-Marelli IAW15RC electronic injection
IgnitionMagneti Marelli IAW 15RC electronic digital ignition with inductive spark
ExhaustThree-way catalyzer with Lambda sensor
LubricationBy lobes with pressure pump
CoolingAir
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchSingle disc, dry, with cush drive
Driveline
Performance
Horespower47.60 HP (34.7 kW)
Torque54.70 Nm (5.6 kgf-m or 40.3 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity14.00 litres (3.70 gallons)
Emissions
Chassis
Frame TypeDetachable tubular duplex cradle in special high-strengh steel
Rake27.5°
Trail138 mm (5.4 inches)
Front SuspensionMarzocchi hydraulic telescopic fork, 40 mm
Front Travel130 mm (5.1 inches)
Rear SuspensionPressure fused oscillating swing arm in light alloy with two preload adjustable shocks
Rear Travel130 mm (5.1 inches)
Seat
Seat Height
Alt. Seat Height
Total Height1,068 mm (42.0 inches)
Total Length2,166 mm (85.3 inches)
Total Width825 mm (32.5 inches)
Ground Clearance290 mm (11.4 inches)
Wheelbase1,467 mm (57.8 inches)
Dry Weight184.0 kg (405.7 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre100/90-18
Rear Tire/Tyre130/90-16
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter260 mm (10.2 inches)
Wheels
