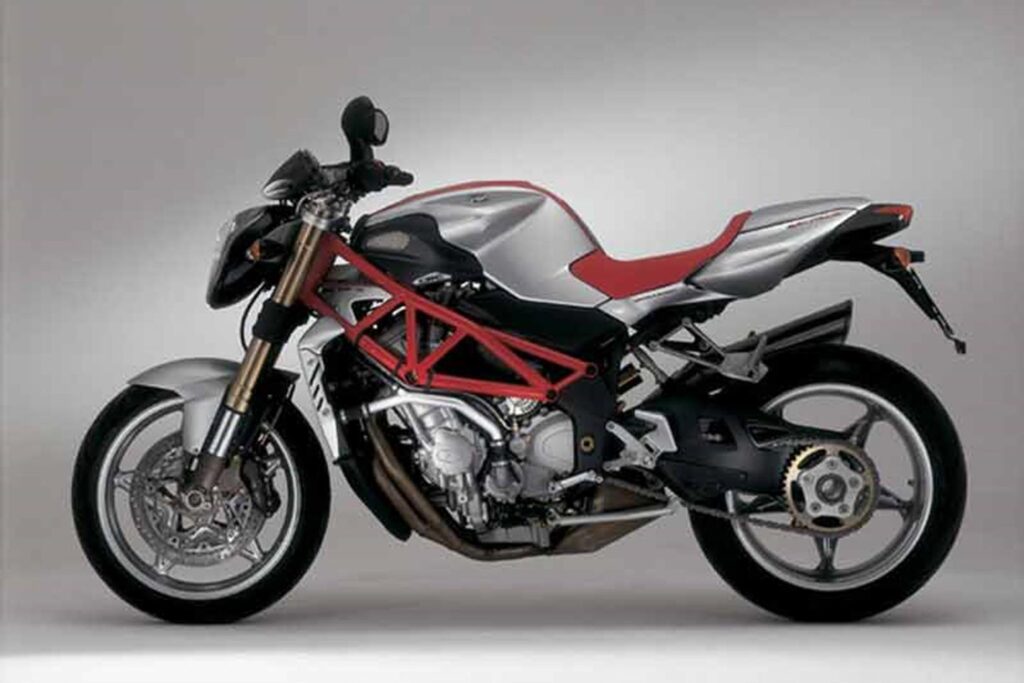

2010 MV Agusta Brutale 910S Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 MV Agusta Brutale 910S.

Basic Specs

Year2010
MakeMV Agusta
ModelMV Agusta Brutale 910S
CostUS$ 14495. Prices depend on country, taxes, accessories, etc.

Engine

Displacement909.00 ccm (55.47 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM12000
Compression13.0:1
Bore/Stroke75.9 x 43.2 mm (3.0 x 1.7 inches)
Valves/Cylinder4
FuelingInjection. “Weber Marelli” 5SM ignition - injection integrated system; induction discharge electronic ignition; sequential timed “Multipoint” electronic injection
Ignition
ExhaustEuro 3
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multiplate
Driveline

Performance

Horespower139.00 HP (101.5 kW)
Torque96.00 Nm (9.8 kgf-m or 70.8 ft.lbs)
Top Speed262.0 km/h (162.8 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.00 litres (5.02 gallons)
Emissions

Chassis

Frame TypeCrMo Steel tubular trellis and aluminium alloy. Thermoplastic fairings.
Rake
Trail102 mm (4.0 inches)
Front SuspensionMarzocchi Magnum upside-down front forks
Front Travel126 mm (5.0 inches)
Rear SuspensionSACHS rear single shock w/ rebound, compression and preload adjustment
Rear Travel120 mm (4.7 inches)
Seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,020 mm (79.5 inches)
Total Width
Ground Clearance135 mm (5.3 inches)
Wheelbase1,410 mm (55.5 inches)
Dry Weight185.0 kg (407.9 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/65-ZR17
Rear Tire/Tyre190/50-ZR17
Front BrakesDouble disc. Nissin, 6-piston
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Nissin, 2-piston
Rear Brake Diameter210 mm (8.3 inches)
Wheels

Comments

It appears you're interested in specifications for the MV Agusta Brutale 910S. This Naked bike model is powered by a In-line four, four-stroke engine with 909.00 ccm (55.47 cubic inches) of actual displacement before 13.0:1 compression. Fueling is metered via Injection. “Weber Marelli” 5SM ignition - injection integrated system; induction discharge electronic ignition; sequential timed “Multipoint” electronic injection allowing this machine to produce its 139.00 HP (101.5 kW) horsepower and 96.00 Nm (9.8 kgf-m or 70.8 ft.lbs) torque. According to our records engine heat of the MV Agusta Brutale 910S is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/65-ZR17 and the rear is 190/50-ZR17 . The entire package is supported by the frame, CrMo Steel tubular trellis and aluminium alloy. Thermoplastic fairings.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Nissin, 6-piston front brakes and Single disc. Nissin, 2-piston rear brakes. The MV Agusta Brutale 910S was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
