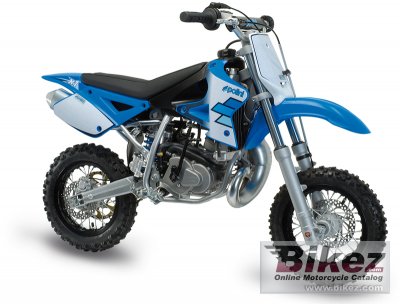

2010 Polini X1R H2O Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Polini X1R H2O.

Basic Specs

Year2010
MakePolini
ModelPolini X1R H2O
Cost

Engine

Displacement49.30 ccm (3.01 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression15.2:1
Bore/Stroke40.0 x 39.3 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor. Dell Orto PHBG 19
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox4-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity3.00 litres (0.79 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionPaioli, 33 mm
Front Travel
Rear SuspensionPaioli monoshock
Rear Travel
Seat
Seat Height600 mm (23.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase900 mm (35.4 inches)
Dry Weight43.0 kg (94.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre2.50-10
Rear Tire/Tyre2.75-10
Front BrakesExpanding brake (drum brake). Hydraulic
Front Brake Diameter160 mm (6.3 inches)
Rear BrakesExpanding brake (drum brake). Hydraulic
Rear Brake Diameter140 mm (5.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Polini X1R H2O. This Minibike, cross model is powered by a Single cylinder, four-stroke engine with 49.30 ccm (3.01 cubic inches) of actual displacement before 15.2:1 compression. Fueling is metered via Carburettor. Dell Orto PHBG 19 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Polini X1R H2O is moderated by Liquid. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 2.50-10 and the rear is 2.75-10 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake). Hydraulic front brakes and Expanding brake (drum brake). Hydraulic rear brakes. The Polini X1R H2O was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Also available with air cooling.
