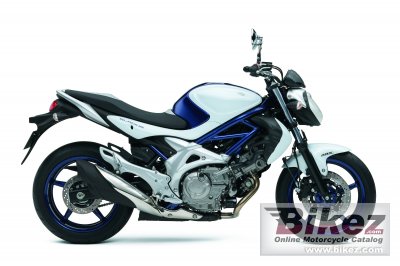

2010 Suzuki Gladius 400 ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Suzuki Gladius 400 ABS.

Basic Specs

Year2010
MakeSuzuki
ModelSuzuki Gladius 400 ABS
Cost

Engine

Displacement399.00 ccm (24.35 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke81.0 x 62.6 mm (3.2 x 2.5 inches)
Valves/Cylinder
FuelingInjection. Suzuki Dual Throttle Valve (SDTV) fuel-injection
IgnitionElectronic ignition
Exhaust
LubricationWet sump
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity14.50 litres (3.83 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic, coil spring, oil damped
Front Travel
Rear SuspensionLink type, coil spring, oil damped, spring preload 7-step adjustable
Rear Travel
Seat
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,090 mm (42.9 inches)
Total Length2,130 mm (83.9 inches)
Total Width760 mm (29.9 inches)
Ground Clearance
Wheelbase1,445 mm (56.9 inches)
Dry Weight
Wet Weight202.0 kg (445.3 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre160/60-ZR17
Front BrakesDouble disc. Electronically controlled ABS
Front Brake Diameter290 mm (11.4 inches)
Rear BrakesSingle disc. Electronically controlled ABS
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Suzuki Gladius 400 ABS. This Naked bike model is powered by a V2, four-stroke engine with 399.00 ccm (24.35 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection. Suzuki Dual Throttle Valve (SDTV) fuel-injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki Gladius 400 ABS is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 160/60-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Electronically controlled ABS front brakes and Single disc. Electronically controlled ABS rear brakes. The Suzuki Gladius 400 ABS was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

The Gladius is named after the kind of sword used by gladiators in ancient Rome.
