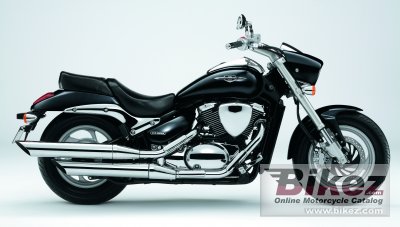

2010 Suzuki Intruder M800 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Suzuki Intruder M800.

Basic Specs

Year2010
MakeSuzuki
ModelSuzuki Intruder M800
Cost

Engine

Displacement805.00 ccm (49.12 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke83.0 x 74.4 mm (3.3 x 2.9 inches)
Valves/Cylinder
FuelingInjection
IgnitionTransistorised
Exhaust
LubricationWet sump
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity15.50 litres (4.10 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionInverted telescopic, coil spring, oil damped
Front Travel
Rear SuspensionLink type, coil spring, oil damped
Rear Travel
Seat
Seat Height700 mm (27.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,125 mm (44.3 inches)
Total Length2,370 mm (93.3 inches)
Total Width920 mm (36.2 inches)
Ground Clearance
Wheelbase1,655 mm (65.2 inches)
Dry Weight247.0 kg (544.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre130/90-M16
Rear Tire/Tyre170/80-M15
Front BrakesSingle disc. 2-piston caliper
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Suzuki Intruder M800. This Custom / cruiser model is powered by a V2, four-stroke engine with 805.00 ccm (49.12 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki Intruder M800 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 130/90-M16 and the rear is 170/80-M15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 2-piston caliper front brakes and Expanding brake (drum brake) rear brakes. The Suzuki Intruder M800 was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
