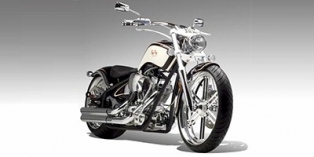

These are the known mechanical and performance specifications for your 2011 Big Dog Pitbull.
Basic Specs
Year2011
MakeBig Dog
ModelBig Dog Pitbull
TypeCustom / cruiser
CostUS$ 26900. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1916.00 ccm (116.91 cubic inches)
Type45 degree V-Twin
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke104.8 x 111.1 mm (4.1 x 4.4 inches)
Valves/Cylinder
FuelingCarburettor. Optional CLEFI
IgnitionElectronic Single Fire
Exhaust
Lubrication
Cooling
Drivetrain
Gearbox6-speed
Final DriveBelt
Clutch
DrivelineComp/BalancePrimary drive
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.41 litres (4.60 gallons)
Emissions
Chassis
Frame TypeRigid frame with spring-seat comfort.
Rake33.0°
Trail114 mm (4.5 inches)
Front Suspension41mm Telescopic
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height648 mm (25.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,586 mm (101.8 inches)
Total Width
Ground Clearance120 mm (4.7 inches)
Wheelbase1,857 mm (73.1 inches)
Dry Weight313.0 kg (690.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre130/60-R23
Rear Tire/Tyre280/40-R20
Front BrakesSingle disc. 4-piston diff bore
Front Brake Diameter
Rear BrakesSingle disc. 4-piston
Rear Brake Diameter
Wheels
Comments
