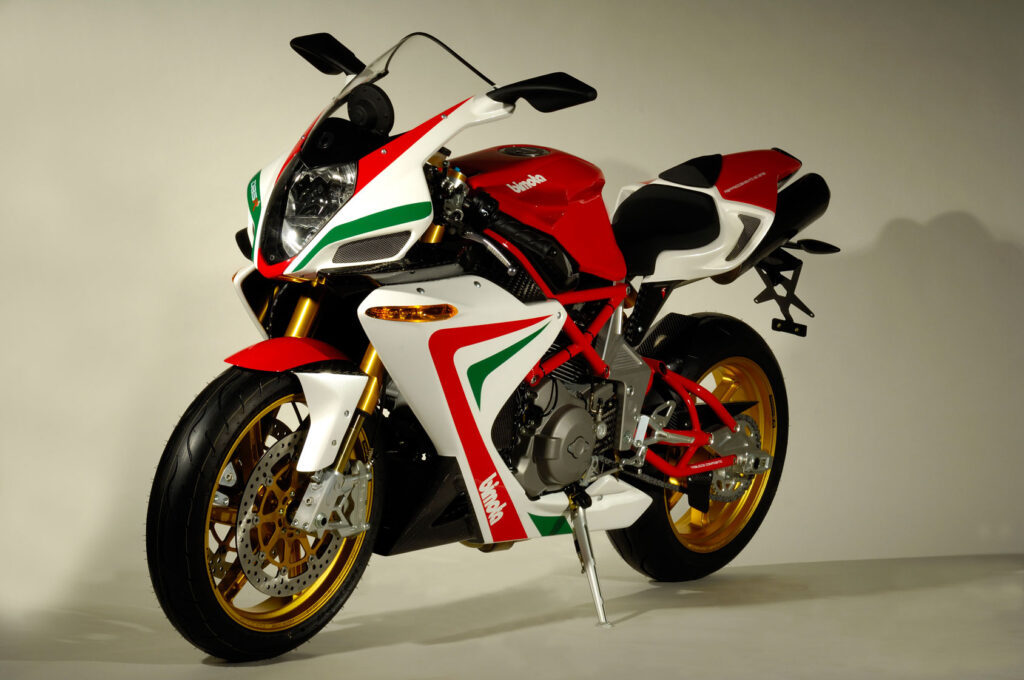

These are the known mechanical and performance specifications for your 2011 Bimota DB5R.
Basic Specs
Engine
Displacement1078.00 ccm (65.78 cubic inches)
TypeDucati 1100DS engine. L-twin.
DetailsV2, four-stroke
Max RPM9000
Compression10.1:1
Bore/Stroke98.0 x 71.5 mm (3.9 x 2.8 inches)
Valves/Cylinder2
FuelingInjection. Magneti Marelli-45mm throttle body
Ignition
Exhaust2 in 1 in 2, inox
LubricationWet sump
CoolingAir
Performance
Horespower95.00 HP (69.3 kW)
Torque102.97 Nm (10.5 kgf-m or 76.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity16.00 litres (4.23 gallons)
Emissions
Chassis
Frame TypeCrMo steel trellis, carbon fibre.
Rake24.0°
Trail100 mm (3.9 inches)
Front Suspension43mm UD Öhlins TIN Coated Fork, fully adjustable (Pre-load, Compression, Rebound)
Front Travel120 mm (4.7 inches)
Rear SuspensionÖhlins Monoshock, fully adjustable (Pre-load - External Hydraulic Device, Compression, Rebound)
Rear Travel120 mm (4.7 inches)
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,180 mm (85.8 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,425 mm (56.1 inches)
Dry Weight
Wet Weight170.0 kg (374.8 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-17
Rear Tire/Tyre180/55-17
Front BrakesSingle disc. Brembo, 4-pistons, 4-pads with radial Brembo calipers
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. 2-pistons, 2-pads with Brembo caliper
Rear Brake Diameter230 mm (9.1 inches)
WheelsForged Alluminium
