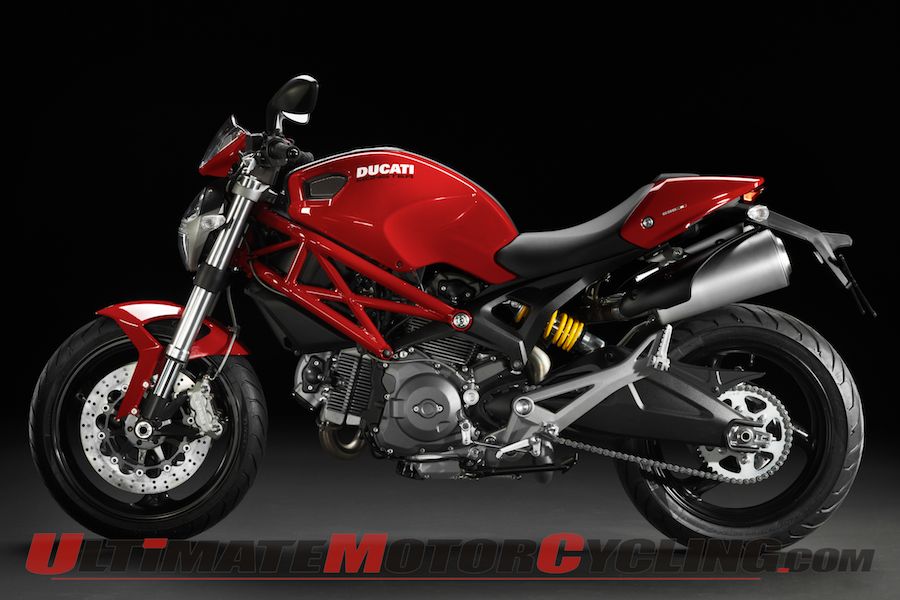

These are the known mechanical and performance specifications for your 2011 Ducati Monster 696.
Basic Specs
Year2011
MakeDucati
ModelDucati Monster 696
TypeNaked bike
CostUS$ 8495. Prices depend on country, taxes, accessories, etc.
Engine
Displacement696.00 ccm (42.47 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.7:1
Bore/Stroke88.0 x 57.2 mm (3.5 x 2.3 inches)
Valves/Cylinder
FuelingInjection. Siemens electronic fuel injection, 45mm throttle body
Ignition
Exhaust2 aluminum mufflers
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchAPTC wet multiplate with hydraulic control
DrivelineChain; Front sprocket 15; Rear sprocket 45
Performance
Horespower78.85 HP (57.6 kW)
Torque50.60 Nm (5.2 kgf-m or 37.3 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.00 litres (3.96 gallons)
Emissions
Chassis
Frame TypeTubular steel Trellis frame
Rake24.0°
Trail
Front SuspensionMarzocchi 43mm upside-down forks
Front Travel120 mm (4.7 inches)
Rear SuspensionProgressive linkage with preload and rebound Sachs adjustable monoshock
Rear Travel148 mm (5.8 inches)
Seat
Seat Height770 mm (30.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,450 mm (57.1 inches)
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/60-17
Rear Tire/Tyre160/60-17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter245 mm (9.6 inches)
Wheels
Comments
