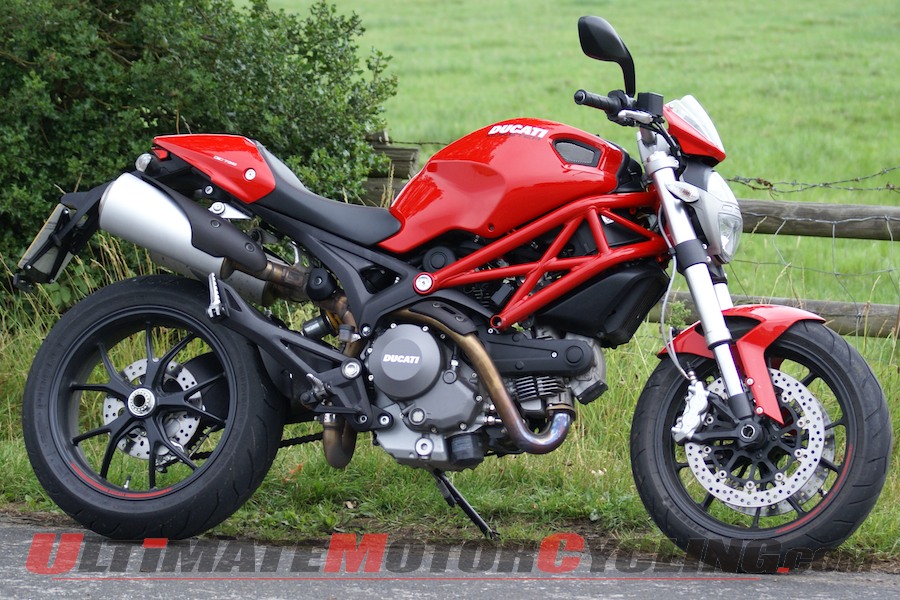

2011 Ducati Monster 796 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Ducati Monster 796.

Basic Specs

Year2011
MakeDucati
ModelDucati Monster 796
CostUS$ 9995. Prices depend on country, taxes, accessories, etc.

Engine

Displacement803.00 ccm (49.00 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke88.0 x 66.0 mm (3.5 x 2.6 inches)
Valves/Cylinder2
FuelingInjection. Siemens electronic fuel injection, 45mm throttle body
Ignition
ExhaustLightweight 2-1-2 system with catalytic converter with twin lambda probes
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchAPTC wet multiplate with hydraulic control
DrivelineChain; Front sprocket 15; Rear sprocket 39

Performance

Horespower85.83 HP (62.6 kW)
Torque58.00 Nm (5.9 kgf-m or 42.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity15.00 litres (3.96 gallons)
Emissions

Chassis

Frame TypeTubular steel Trellis frame
Rake24.0°
Trail
Front SuspensionMarzocchi 43mm upside-down forks
Front Travel120 mm (4.7 inches)
Rear SuspensionProgressive linkage with preload and rebound Sachs adjustable monoshock
Rear Travel148 mm (5.8 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,450 mm (57.1 inches)
Dry Weight167.0 kg (368.2 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Optional Anti-Lock braking
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter245 mm (9.6 inches)
Wheels

Comments

It appears you're interested in specifications for the Ducati Monster 796. This Naked bike model is powered by a V2, four-stroke engine with 803.00 ccm (49.00 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection. Siemens electronic fuel injection, 45mm throttle body allowing this machine to produce its 85.83 HP (62.6 kW) horsepower and 58.00 Nm (5.9 kgf-m or 42.8 ft.lbs) torque. According to our records engine heat of the Ducati Monster 796 is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Tubular steel Trellis frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Optional Anti-Lock braking front brakes and Single disc rear brakes. The Ducati Monster 796 was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
