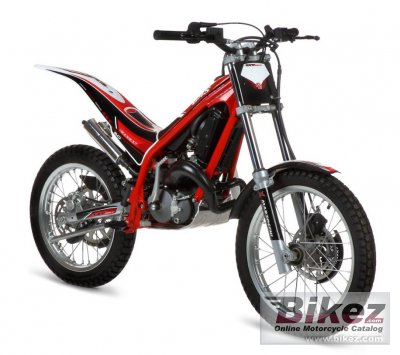

These are the known mechanical and performance specifications for your 2011 GAS GAS TXT Boy 50cc.
Basic Specs
Engine
Displacement49.38 ccm (3.01 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke40.0 x 39.3 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor. Dell´Orto PHVA14 - Intake by reed valve
IgnitionVariable Electronic
Exhaust
Lubrication2% Mixture
CoolingLiquid
Drivetrain
Gearbox2-speed
Final DriveChain
ClutchAutomatic system with manual influence
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity3.00 litres (0.79 gallons)
Emissions
Chassis
Frame TypeChrom-Molybdenum tubular frame
Rake
Trail
Front Suspension32mm Marzocchi fork
Front Travel140 mm (5.5 inches)
Rear SuspensionHydraulic Sachs shock
Rear Travel155 mm (6.1 inches)
Seat
Seat Height600 mm (23.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height970 mm (38.2 inches)
Total Length1,540 mm (60.6 inches)
Total Width660 mm (26.0 inches)
Ground Clearance
Wheelbase1,005 mm (39.6 inches)
Dry Weight42.0 kg (92.6 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre2.50-16
Rear Tire/Tyre3.00-14
Front BrakesSingle disc. 2 -piston caliper
Front Brake Diameter160 mm (6.3 inches)
Rear BrakesSingle disc. 2-piston caliper
Rear Brake Diameter150 mm (5.9 inches)
WheelsLight aluminium spoke rim
Comments
Bike made in Spain. 2 speed level, preselectable in standing position.
