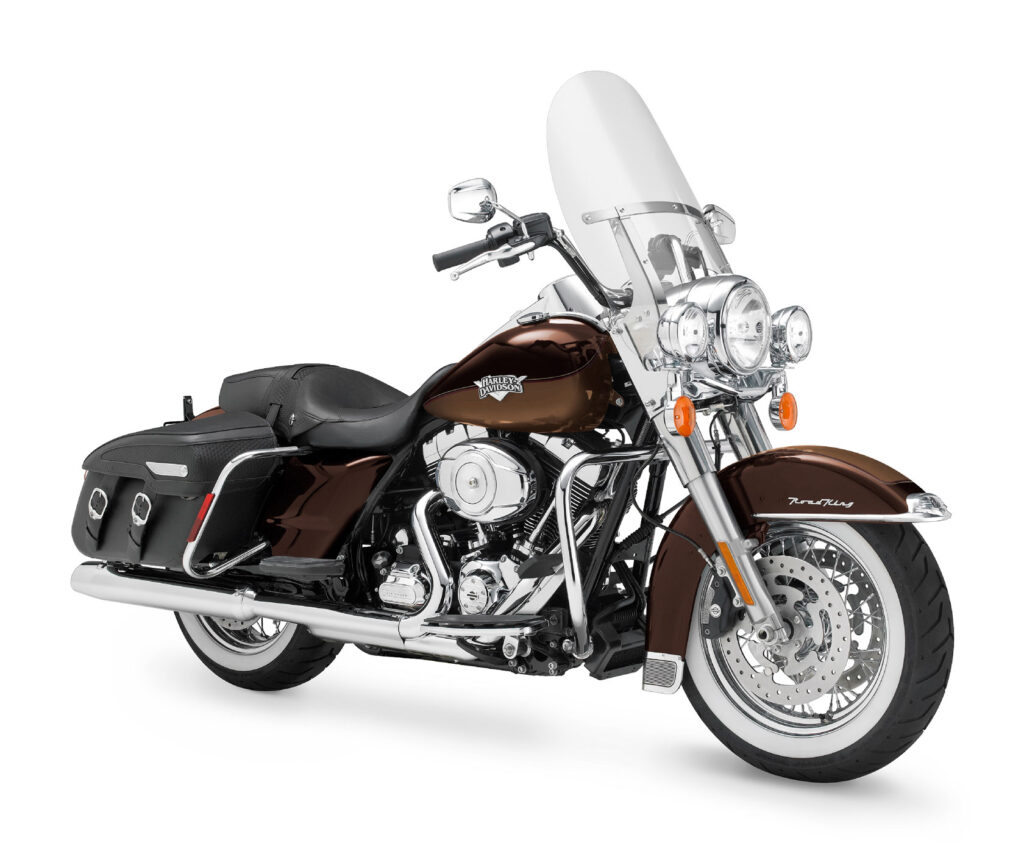

2011 Harley-Davidson FLHRC Road King Classic Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Harley-Davidson FLHRC Road King Classic.

Basic Specs

Year2011
MakeHarley-Davidson
ModelHarley-Davidson FLHRC Road King Classic
CostUS$ 19499. Euro 21285. UK £ 16540. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1584.00 ccm (96.66 cubic inches)
TypeTwin Cam 103
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder2
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
Exhaust2-1-2 chrome exhaust with dual mufflers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate, wet
DrivelinePrimary Drive: Chain, 34/46 ratio. Final Drive: 32/68 ratio

Performance

Horespower
Torque138.00 Nm (14.1 kgf-m or 101.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity22.70 litres (6.00 gallons)
Emissions

Chassis

Frame TypeMild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame.
Rake26.0°
Trail170 mm (6.7 inches)
Front Suspension41.3mm telescopic
Front Travel117 mm (4.6 inches)
Rear SuspensionAir-adjustable
Rear Travel76 mm (3.0 inches)
Seat
Seat Height714 mm (28.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,393 mm (94.2 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,630 mm (64.2 inches)
Dry Weight355.0 kg (782.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre130/90-B16
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. 4-piston fixed caliper. Optional ABS.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 4-piston fixed caliper. Optional ABS.
Rear Brake Diameter300 mm (11.8 inches)
WheelsChrome, Laced Steel

Comments

It appears you're interested in specifications for the Harley-Davidson FLHRC Road King Classic. This Touring model is powered by a Twin Cam 103 V2, four-stroke engine with 1584.00 ccm (96.66 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its horsepower and 138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FLHRC Road King Classic is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/90-B16 and the rear is 180/65-B16 . The entire package is supported by the frame, Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4-piston fixed caliper. Optional ABS. front brakes and Single disc. 4-piston fixed caliper. Optional ABS. rear brakes. The Harley-Davidson FLHRC Road King Classic was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
