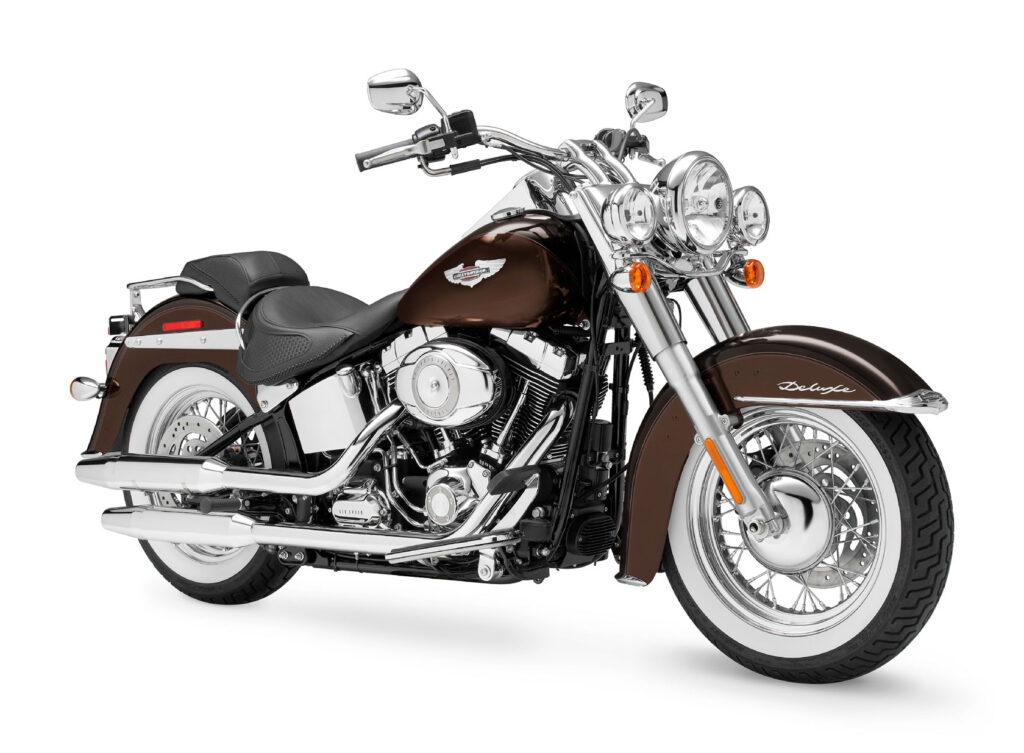

These are the known mechanical and performance specifications for your 2011 Harley-Davidson FLSTN Softail Deluxe.
Basic Specs
Year2011
MakeHarley-Davidson
ModelHarley-Davidson FLSTN Softail Deluxe
TypeCustom / cruiser
CostUS$ 16799. Euro 19790. UK £ 15290. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1584.00 ccm (96.66 cubic inches)
TypeTwin Cam 96B. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
LubricationPressurized, dry-sump
CoolingAir
Performance
Horespower
Torque127.00 Nm (12.9 kgf-m or 93.7 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.29 litres/100 km (18.9 km/l or 44.47 mpg)
Fuel Capacity19.70 litres (5.20 gallons)
Emissions122.7 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeMild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded.
Rake32.0°
Trail147 mm (5.8 inches)
Front Suspension41.3mm telescopic, “beer can” covers
Front Travel130 mm (5.1 inches)
Rear SuspensionHidden, horizontal-mounted, coil-over
Rear Travel91 mm (3.6 inches)
Seat
Seat Height658 mm (25.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,125 mm (44.3 inches)
Total Length2,405 mm (94.7 inches)
Total Width980 mm (38.6 inches)
Ground Clearance122 mm (4.8 inches)
Wheelbase1,635 mm (64.4 inches)
Dry Weight315.3 kg (695.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/TyreMT90-16
Rear Tire/TyreMU85-B16
Front BrakesSingle disc. 4-piston
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter292 mm (11.5 inches)
WheelsChrome, Laced Steel
