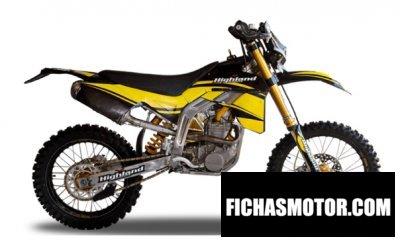

These are the known mechanical and performance specifications for your 2011 Highland 350cc Trail.
Basic Specs
Engine
Displacement349.00 ccm (21.30 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke
Valves/Cylinder4
FuelingInjection. EFI
IgnitionDigital, coil on plug
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet, multiplate
Driveline6-speed constant mesh
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.57 litres (2.00 gallons)
Emissions
Chassis
Frame TypeHyTens stainless steel
Rake
Trail
Front SuspensionTelescopic fork
Front Travel300 mm (11.8 inches)
Rear SuspensionPDS
Rear Travel221 mm (8.7 inches)
Seat
Seat Height851 mm (33.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance274 mm (10.8 inches)
Wheelbase1,491 mm (58.7 inches)
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre110/80-19
Rear Tire/Tyre150/70-17
Front BrakesSingle disc. 2-piston
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Single piston
Rear Brake Diameter221 mm (8.7 inches)
Wheels
Comments
Yellow/black
